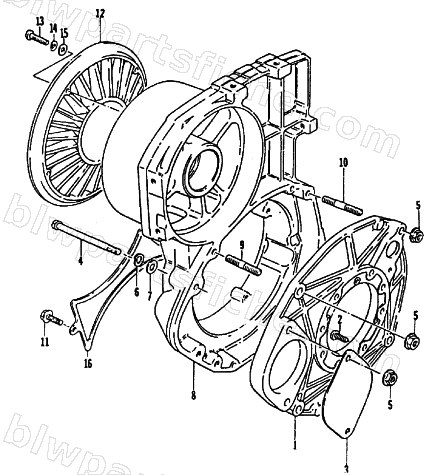

1985 Arctic Cat COUGAR — FAN HOUSING
1985 COUGAR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-561 | CASE,MAGNETO | 1 | $540.95 | |
| 2 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 4 | 3007-355 | BOLT | 1 | $3.95 | |
| 5 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 6 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 7 | 3423-204 | WASHER | 1 | $1.95 | |
| 9 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 10 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 11 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 13 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 14 | 3007-847 | WASHER,LOCK-4MM | 1 | $3.16 | |
| 15 | 3423-902 | WASHER SUB T/M 4MM | 1 | $3.16 | |
| 16 | 3002-152 | COVER,FAN BELT | 1 | $5.95 |
