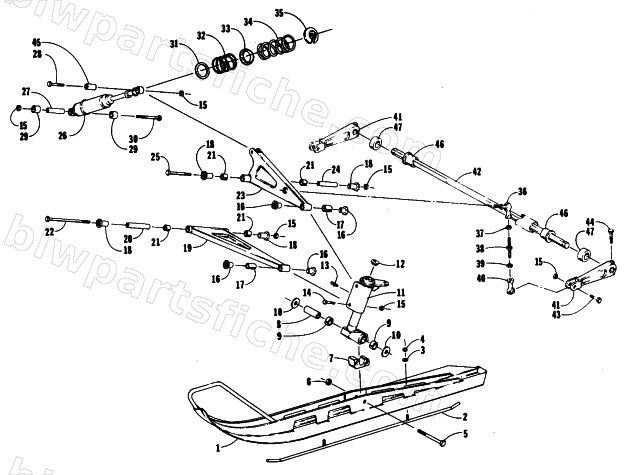

1985 Arctic Cat COUGAR — SKI, AND FRONT SUSPENSION
1985 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-001 | SKI,PTD BLK | 1 | $211.95 | |
| 2 | 0703-002 | SKAG-PTD BLK | 1 | $17.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 0603-035 | WASHER, THRUST | 1 | $20.63 | |
| 11 | 0703-047 | SPINDLE & HOUSING ASS'Y-W/BEARING | 1 | $274.95 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 0603-028 | AXLE,SERRATED(ARM) | 1 | $2.95 | |
| 17 | 0603-027 | BEARING | 1 | $41.95 | |
| 18 | 0603-029 | AXLE,SERRATED(ARM) | 1 | $5.95 | |
| 19 | 0703-024 | LOWER ARM ASSEMBLY | 1 | $302.95 | |
| 20 | 0603-038 | TUBE, AXLE | 1 | $18.95 | |
| 21 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 22 | 0623-240 | SCREW,CAP 3/8-16X6.6 GD8 | 1 | $9.95 | |
| 23 | 0703-023 | UPPER ARM ASSEMBLY | 1 | $308.95 | |
| 24 | 0603-037 | AXLE,TOP ARM | 1 | $34.95 | |
| 25 | 8013-235 | SCREW,CAP-HH 3/8-16 X 4.50 GR8 Z&Y | 1 | $2.82 | |
| 26 | 0603-099 | SHOCK ABSORBER-FRONT SUSP. | 1 | $152.95 | |
| 27 | 0603-050 | TUBE, AXLE | 1 | $55.95 | |
| 28 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 29 | 0603-051 | SPACER,SHOCK MTING | 1 | $37.95 | |
| 30 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 31 | 0603-032 | WASHER, SHOCK | 1 | $1.50 | |
| 32 | 1703-834 | SPRING,COMPRESSION-PTD BLK | 1 | $50.95 | |
| 33 | 0603-031 | SPACER,SPRING | 1 | $43.95 | |
| 34 | 1703-524 | SPRING,COMPRESSION FRONT-PTD BLK | 1 | $93.95 | |
| 35 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 45 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 46 | 0603-052 | BEARING,SWAY BAR | 1 | $2.95 | |
| 47 | 0603-055 | SPACER, SWAY BAR | 1 | $54.95 |
