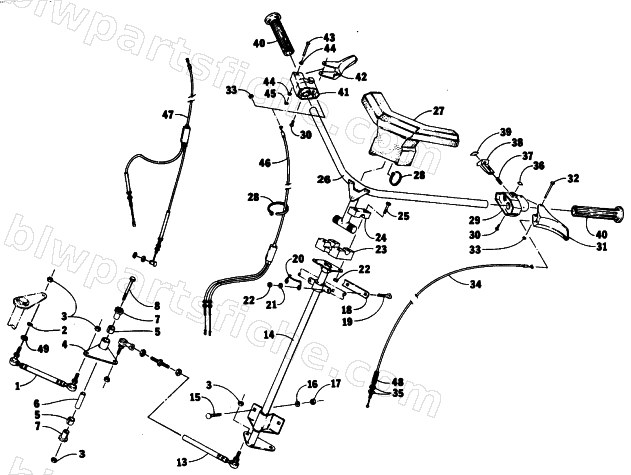

STEERING
1985 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0637-023 | TIE ROD ASS'Y | 1 | $102.95 | |
| 2 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 0637-026 | BELL CRANK ASS'Y | 1 | $67.95 | |
| 5 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 7 | 0603-029 | AXLE,SERRATED(ARM) | 1 | $5.95 | |
| 8 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 9 | 0637-022 | BALL JOINT ASS'Y | 1 | $83.95 | |
| 10 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 11 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 12 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 13 | 0637-027 | ROD ASS'Y | 1 | $101.95 | |
| 14 | 0637-024 | STEERING POST ASS'Y | 1 | $270.95 | |
| 15 | 0124-053 | BOLT,CARRIAGE 5/16-18 X 7/8 | 1 | $0.55 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0105-203 | PLATE, BACKING | 1 | $10.95 | |
| 19 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 20 | 0117-769 | GUIDE CABLE STRG SUPPORT | 1 | $6.75 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 24 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 25 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 0105-376 | HANDLEBAR STEERING-WELDMENT | 1 | $324.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0117-287 | SWITCH,BRAKE | 1 | $192.95 | |
| 30 | 0124-047 | SCREW,PH,#6-32 SLF TAP | 1 | $0.15 | |
| 31 | 0115-280 | LEVER,BRAKE | 1 | $37.95 | |
| 32 | 0123-927 | PIN,1/4 DIA-BRAKE HANDLE | 1 | $6.34 | |
| 33 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 34 | 0187-202 | CABLE,BRAKE | 1 | $76.95 | |
| 35 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 37 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 38 | 0115-278 | ACTUATOR PARK BRKE | 1 | $10.97 | |
| 39 | 0211-919 | DECAL, PARK BUTTON | 1 | $7.95 | |
| 40 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 41 | 0709-040 | SWITCH,THROTTLE ASSY | 1 | $208.95 | |
| 42 | 0115-570 | LEVER,THROTTLE | 1 | $38.95 | |
| 43 | 0123-918 | PIN,LEVER | 1 | $15.11 | |
| 45 | 0123-810 | RING RETAINING 3/16 EXT | 1 | $0.45 | |
| 48 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 49 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 50 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 |
