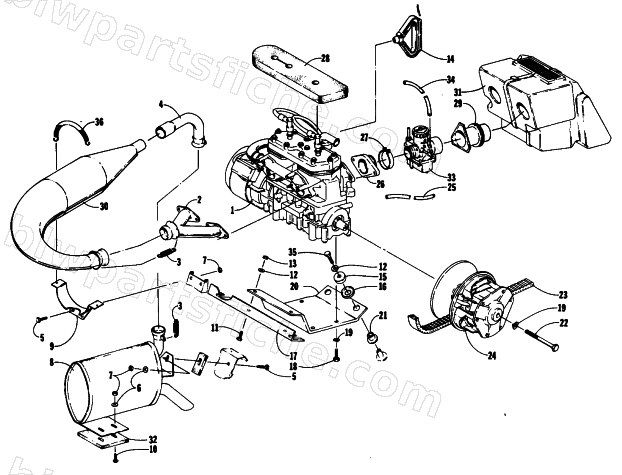

1985 Arctic Cat EL TIGRE 6000 — ENGINE AND RELATED PARTS
1985 EL TIGRE 6000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0112-616 | MANIFOLD,EXHAUST-WELDT | 1 | $151.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 5 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 11 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-004 | ANGLE, SUPPORT | 1 | $69.95 | |
| 18 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0608-002 | PLATE, ENG MTG | 1 | $174.95 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 0623-115 | BOLT,HEX HD CAP 1/2-20UNFX6.870 | 1 | $21.95 | |
| 23 | 0627-006 | DRIVE BELT, CVT | 1 | $77.95 | |
| 24 | 0725-004 | R/B 0725-037 | 1 | $379.85 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 27 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 28 | 0115-613 | SEAL RAD DUCT | 1 | $42.95 | |
| 29 | 1670-383 | BOOT, AIR SILENCER | 1 | $136.95 | |
| 33 | 0170-135 | CARB VM38-87 ET 6000 | 1 | $253.95 | |
| 34 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 34 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 35 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 36 | 0612-013 | SPRING,EXTENSION | 1 | $20.63 |
