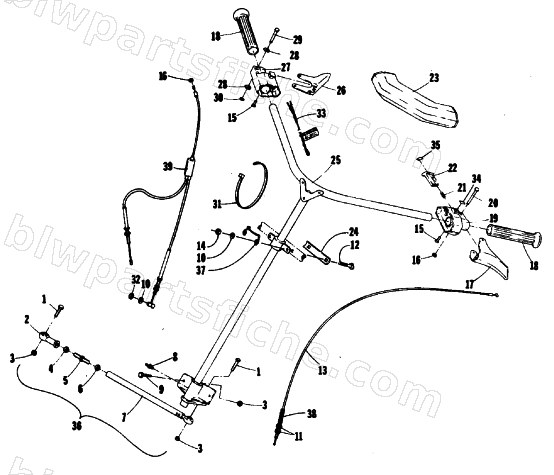

STEERING
1985 JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 5 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 6 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 7 | 0105-701 | TIE ROD,STEERING | 1 | $52.95 | |
| 8 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 9 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 12 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 13 | 0187-202 | CABLE,BRAKE | 1 | $76.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0124-047 | SCREW,PH,#6-32 SLF TAP | 1 | $0.15 | |
| 16 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 17 | 0115-280 | LEVER,BRAKE | 1 | $37.95 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 19 | 0117-287 | SWITCH,BRAKE | 1 | $192.95 | |
| 20 | 0123-927 | PIN,1/4 DIA-BRAKE HANDLE | 1 | $6.34 | |
| 21 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 22 | 0115-278 | ACTUATOR PARK BRKE | 1 | $10.97 | |
| 23 | 0117-025 | PAD HANDLEBAR | 1 | $74.95 | |
| 24 | 0105-203 | PLATE, BACKING | 1 | $10.95 | |
| 25 | 0705-001 | HANDLEBAR | 1 | $334.95 | |
| 26 | 0115-570 | LEVER,THROTTLE | 1 | $38.95 | |
| 27 | 0709-040 | SWITCH,THROTTLE ASSY | 1 | $208.95 | |
| 29 | 0123-918 | PIN,LEVER | 1 | $15.11 | |
| 30 | 0123-810 | RING RETAINING 3/16 EXT | 1 | $0.45 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 0124-057 | E-RING | 1 | $1.64 | |
| 35 | 0211-919 | DECAL, PARK BUTTON | 1 | $7.95 | |
| 37 | 0117-769 | GUIDE CABLE STRG SUPPORT | 1 | $6.75 | |
| 38 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 39 | 0187-076 | CABLE,THROTTLE-VM34 | 1 | $137.95 |
