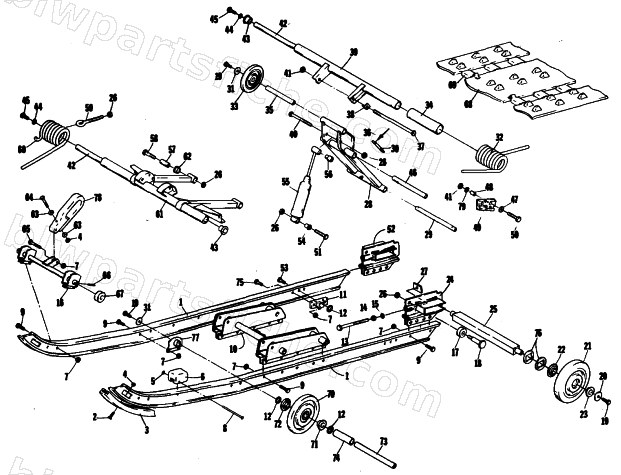

UNDERCARRIAGE AND TRACK
1985 JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0114-157 | RAIL,SLIDE FORMED | 1 | $177.95 | |
| 2 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 6 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 9 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 10 | 0114-152 | BRKT,MTG-FRONT ARM-WELD | 1 | $244.95 | |
| 12 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 13 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 14 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 15 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 16 | 0704-627 | CROSSBRACE,FRONT-WELDMENT(0104-910) | 1 | $110.95 | |
| 18 | 0104-842 | BOLT,SHOULDER | 1 | $26.95 | |
| 19 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 21 | 0114-210 | WHEEL,IDL 6.38(2-3/4DIA INSR) | 1 | $54.95 | |
| 22 | 0104-342 | INSERT 3/4 BORE X 2 OD | 1 | $15.11 | |
| 23 | 0104-343 | INSERT,3/4 BORE X 1.570 OD | 1 | $13.73 | |
| 24 | 0114-120 | HOUSING,REAR AXLE WELDED RH | 1 | $100.95 | |
| 25 | 0114-128 | AXLE,REAR | 1 | $161.95 | |
| 26 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 27 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 28 | 0114-094 | SUPPORT,IDLER WHEEL | 1 | $125.95 | |
| 29 | 0114-170 | AXLE,REAR ARM PIVOT | 1 | $85.95 | |
| 30 | 0104-073 | PAD,SHOCK | 1 | $21.95 | |
| 31 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 32 | 0114-226 | SPRING,RIGHT-REAR | 1 | $50.95 | |
| 32 | 0114-227 | SPRING,LEFT-REAR | 1 | $44.95 | |
| 34 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 36 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 38 | 0123-863 | WASHER,TAB LOCK | 1 | $3.16 | |
| 39 | 0114-234 | HOUSING REAR AXLE-PTD BLACK | 1 | $219.95 | |
| 41 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 42 | 0114-229 | AXLE,INNER CARRIAGE | 1 | $58.95 | |
| 43 | 0114-162 | BUSHING,AXLE | 1 | $5.95 | |
| 45 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 47 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 48 | 0114-072 | TUBE,PIVOT-SPRING ADJUSTR | 1 | $10.95 | |
| 49 | 0114-062 | ADJUSTER,RH RR SUSP | 1 | $37.95 | |
| 49 | 0114-063 | ADJUSTER,LH RR SUSP | 1 | $37.95 | |
| 50 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 51 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 52 | 0114-121 | HOUSING,REAR AXLE WELDED LH | 1 | $82.95 | |
| 53 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 55 | 0114-124 | SHOCK ABSORBER,RR ARM | 1 | $99.95 | |
| 57 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 58 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 59 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 60 | 1704-162 | SPRING,SUSPENSION- FRT-RH PTD BLK | 1 | $59.95 | |
| 60 | 1704-163 | SPRING,SUSPENSION- FRT-LH PTD BLK | 1 | $57.95 | |
| 62 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 63 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 64 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 65 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 66 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 67 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 69 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 | |
| 70 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 71 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 72 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 73 | 0114-133 | AXLE,INNER-AUX WHL-FRONT | 1 | $77.95 | |
| 74 | 0114-148 | SPACER,AUX WHEEL-INSIDE | 1 | $19.95 | |
| 75 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 76 | 0114-130 | WASHER,RECT 1.015 X 1.62 12GA | 1 | $2.95 | |
| 77 | 0114-253 | SUPPORT AUX WHEEL-WELDMENT | 1 | $84.95 | |
| 79 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 |
