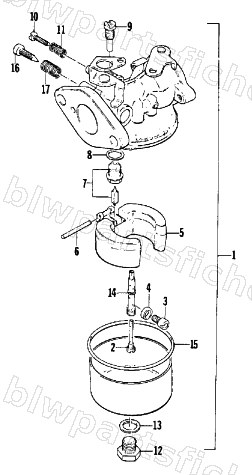

CARBURETOR
1985 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-036 | CARBURETOR ASS'Y | 1 | $283.95 | |
| 2 | 6505-285 | TUBE, EMULSION | 1 | $36.95 | |
| 3 | 3003-189 | JET, MAIN(72.5) | 1 | $17.87 | |
| 4 | 3004-991 | RING | 1 | $10.95 | |
| 5 | 6505-287 | FLOAT | 1 | $37.95 | |
| 6 | 6505-288 | PIN,FLOAT | 1 | $4.95 | |
| 7 | 6505-293 | VALVE,NEEDLE | 1 | $53.95 | |
| 8 | 6505-244 | GASKET CARBURETOR | 1 | $1.64 | |
| 9 | 6505-297 | JET PILOT #35 (SUZ) | 1 | $17.87 | |
| 10 | 6505-294 | SCREW THROTTLE ADJUSTING | 1 | $3.95 | |
| 11 | 6505-289 | SPRING | 1 | $4.54 | |
| 12 | 3003-262 | BOLT,CARB | 1 | $16.95 | |
| 13 | 6505-013 | WASHER | 1 | $1.23 | |
| 14 | 6505-284 | NOZZLE ( SUZ ) | 1 | $38.95 | |
| 15 | 6505-286 | GASKET FLOAT CHAMBER | 1 | $4.54 | |
| 16 | 3003-263 | SCREW,PILOT ADJUST | 1 | $13.73 | |
| 17 | 6505-291 | SPRING | 1 | $20.63 |
