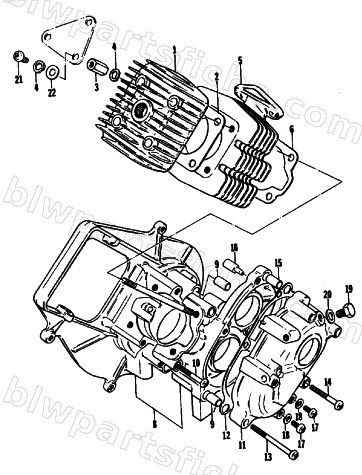

CRANKCASE AND CYLINDER
1985 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-469 | HEAD,CYLINDER | 1 | $82.95 | |
| 2 | 3002-470 | GASKET,CYLINDER HEAD | 1 | $29.95 | |
| 3 | 3002-454 | NUT,M6-1X LONG-CYL HD | 1 | $2.47 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3003-682 | CYLINDER, 60CC | 1 | $421.95 | |
| 6 | 3004-967 | GASKET, CYLINDER | 1 | $13.95 | |
| 7 | 3002-451 | BOLT,STUD M6 | 1 | $3.95 | |
| 8 | 3003-185 | CRANKCASE ASSY | 1 | $337.95 | |
| 9 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 10 | 3004-845 | SCREW,M6X45 | 1 | $3.16 | |
| 11 | 3002-617 | CASE GEAR | 1 | $140.95 | |
| 12 | 3402-436 | WASHER | 1 | $1.92 | |
| 13 | 3004-846 | SCREW,M6X75 | 1 | $2.95 | |
| 16 | 3004-294 | PLUG, BREATHER | 1 | $16.49 | |
| 17 | 3003-260 | PLUG,OIL LEVEL(BOLT),M6X8 | 1 | $3.16 | |
| 18 | 3002-456 | GASKET,M6 | 1 | $2.19 | |
| 19 | 3002-460 | PLUG,M8X -OIL FILTER | 1 | $6.47 | |
| 21 | 3004-849 | SCREW,M6X10 | 1 | $2.47 | |
| 22 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 |
