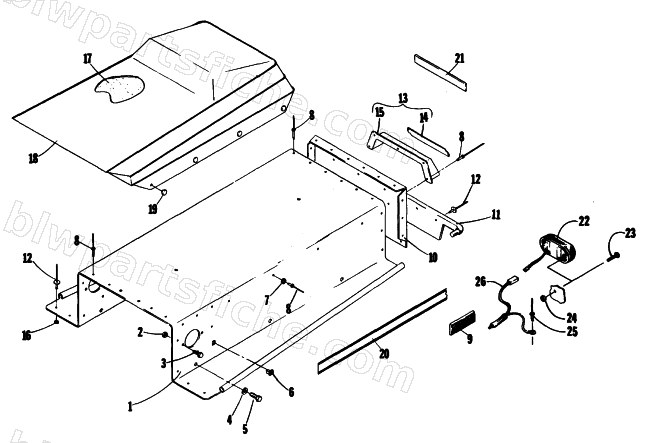

SEAT, TUNNEL, AND TAILIGHT
1985 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0302-143 | TUNNEL | 1 | $135.95 | |
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 6 | 0123-534 | NUT,EXPANSION 8-18 | 1 | $0.40 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 12 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 14 | 0611-025 | DECAL,HANDLE KC | 1 | $31.95 | |
| 15 | 0300-173 | HANDLE REAR | 1 | $27.95 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 17 | 0302-131 | PAD,FOAM | 1 | $102.95 | |
| 18 | 0302-157 | SEAT COVER ASSY | 1 | $274.95 | |
| 19 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 20 | 0611-967 | DECAL,REFLECTIVE TAPE (25') | 1 | $160.95 | |
| 22 | 0709-007 | ASSY,RED TAILLIGHT REFLECTOR | 1 | $81.95 | |
| 24 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 26 | 0686-020 | HARNESS,WIRING LIGHT | 1 | $58.95 |
