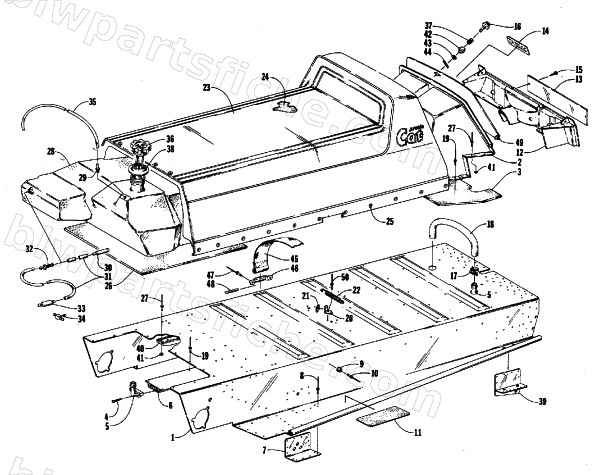

1986 Arctic Cat CHEETAH 530 L/C — TUNNEL, GAS TANK, SEAT, AND TOOLBOX
1986 CHEETAH 530 L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0706-303 | SHROUD,TOOLBOX-BLK-ASSY | 1 | $128.95 | |
| 4 | 0623-024 | SCREW,#10-32 X 1 HWH | 1 | $0.95 | |
| 5 | 0117-996 | CAP END | 1 | $101.95 | |
| 6 | 0606-003 | HEAT EXCHANGER | 1 | $161.95 | |
| 7 | 0106-930 | PLATE, MOUNTING | 1 | $13.95 | |
| 8 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 9 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 13 | 0606-067 | PLATE, COVER | 1 | $24.95 | |
| 14 | 0611-101 | DECAL,CHEETAH | 1 | $33.95 | |
| 15 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 16 | 0115-341 | LATCH HEAD | 1 | $6.75 | |
| 19 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 20 | 0116-949 | BRACKET,GAS TANK-MTG | 1 | $4.95 | |
| 22 | 0123-808 | SPRING,EXT HOOK-.28DX4 FL | 1 | $3.95 | |
| 23 | 0706-065 | COVER, SEAT | 1 | $670.95 | |
| 24 | 0117-261 | FOAM SEAT | 1 | $306.95 | |
| 25 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 27 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 29 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 30 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 31 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 31 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 32 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 33 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 34 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 35 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 36 | 0670-136 | CAP,GAS W/GAUGE | 1 | $84.95 | |
| 37 | 0115-340 | SPRING | 1 | $5.95 | |
| 38 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 39 | 0706-059 | BRKT,SUSP-WELDED L | 1 | $29.95 | |
| 39 | 0706-060 | BRKT,SUSP-WELDED R | 1 | $29.95 | |
| 41 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 42 | 0115-343 | LATCH BASE | 1 | $5.65 | |
| 43 | 0123-980 | RING,RETAINING .50 | 1 | $1.95 | |
| 44 | 8070-158 | PIN,SPRING-3/32 X 5/8 SLOTTED P&O | 1 | $0.35 | |
| 45 | 0114-472 | STRAP,PASSENGER | 1 | $26.95 | |
| 47 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 48 | 0117-427 | PIN,RETAINER HANDGRIP | 1 | $3.95 | |
| 50 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
