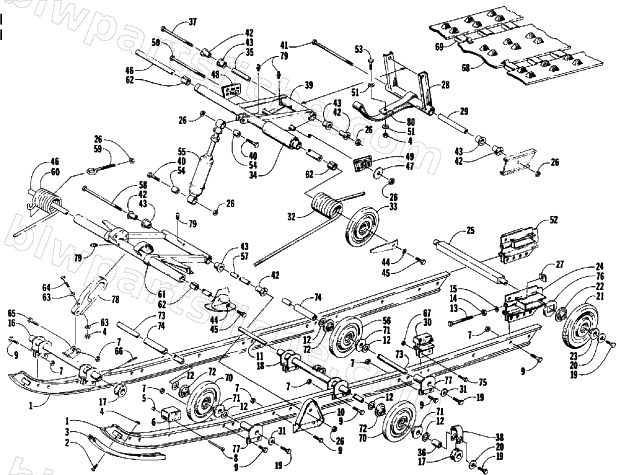

1986 Arctic Cat CHEETAH 530 L/C — UNDERCARRIAGE AND TRACK
1986 CHEETAH 530 L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 3 | 0604-910 | WEAR STRIP,SLIDE RAIL-BLACK | 1 | $37.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 6 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 9 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 11 | 0604-081 | AXLE, INNER | 1 | $40.95 | |
| 12 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 13 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 14 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 15 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 16 | 0704-627 | CROSSBRACE,FRONT-WELDMENT(0104-910) | 1 | $110.95 | |
| 17 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 19 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 21 | 0114-210 | WHEEL,IDL 6.38(2-3/4DIA INSR) | 1 | $54.95 | |
| 22 | 0104-342 | INSERT 3/4 BORE X 2 OD | 1 | $15.11 | |
| 23 | 0104-343 | INSERT,3/4 BORE X 1.570 OD | 1 | $13.73 | |
| 24 | 0114-120 | HOUSING,REAR AXLE WELDED RH | 1 | $100.95 | |
| 25 | 0114-128 | AXLE,REAR | 1 | $161.95 | |
| 26 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 27 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 29 | 0604-059 | TUBE,AXLE-REAR ARM | 1 | $33.95 | |
| 31 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 32 | 1704-173 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $129.95 | |
| 33 | 0604-061 | WHEEL,IDLER | 1 | $50.95 | |
| 34 | 0114-160 | SLEEVE,SPRING | 1 | $12.35 | |
| 35 | 0604-070 | AXLE, IDLER ARM | 1 | $26.95 | |
| 36 | 0604-080 | TUBE,SPRING ROLLER | 1 | $10.95 | |
| 37 | 8002-239 | SCREW,CAP-HH 3/8-16 X6.50 G5 Z&Y | 1 | $2.47 | |
| 38 | 0604-079 | STRAP, SPRING RET. | 1 | $14.95 | |
| 40 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 41 | 0623-007 | HHCS 3/8-16X8 1/2 GR5 | 1 | $8.95 | |
| 42 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 43 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 44 | 8051-278 | WASHER,SPR LOCK-3/8 .377X.688X.115 BLK | 1 | $2.95 | |
| 45 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 46 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 47 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 48 | 0114-062 | ADJUSTER,RH RR SUSP | 1 | $37.95 | |
| 49 | 0114-063 | ADJUSTER,LH RR SUSP | 1 | $37.95 | |
| 50 | 8002-240 | SCREW,CAP-HH 3/8-16 X7.00 G5 Z&Y | 1 | $2.95 | |
| 51 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 52 | 0114-121 | HOUSING,REAR AXLE WELDED LH | 1 | $82.95 | |
| 53 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 54 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 55 | 0604-078 | SHOCK ABSORBER | 1 | $97.95 | |
| 56 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 57 | 0604-073 | AXLE, FRONT ARM | 1 | $79.95 | |
| 58 | 0623-033 | HHCS 3/8-16X9 GR5 | 1 | $5.95 | |
| 59 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 60 | 1704-162 | SPRING,SUSPENSION- FRT-RH PTD BLK | 1 | $59.95 | |
| 60 | 1704-163 | SPRING,SUSPENSION- FRT-LH PTD BLK | 1 | $57.95 | |
| 62 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 64 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 65 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 66 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 67 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 68 | 0602-001 | TRACK ASSEMBLY | 1 | $799.95 | |
| 69 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 | |
| 70 | 0604-004 | WHEEL,IDL-5.35(2-5/8DIA INSR) | 1 | $53.95 | |
| 71 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 72 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 73 | 0604-076 | AXLE, INNER | 1 | $19.29 | |
| 74 | 0114-148 | SPACER,AUX WHEEL-INSIDE | 1 | $19.95 | |
| 76 | 0623-023 | WASHER, RECTANG. | 1 | $1.95 | |
| 77 | 0704-021 | R/B 0636-267 | 1 | $13.35 | |
| 79 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 80 | 0604-088 | STRAP, LIMITER | 1 | $12.99 |
