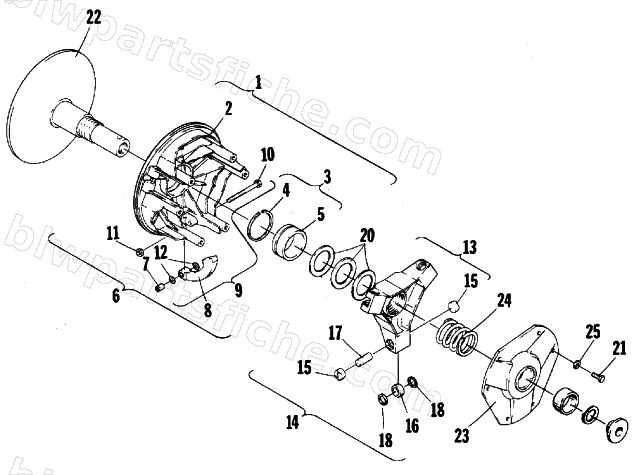

1986 Arctic Cat EL TIGRE — DRIVE CLUTCH
1986 EL TIGRE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0725-006 | R/B 0725-039 | 1 | $379.85 | |
| 3 | 0136-222 | KIT, BUSHING (MOV SH | 1 | $47.95 | |
| 7 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 8 | 0746-540 | ARM,CAM-W/BRG-46.5 GRAM | 1 | $14.95 | |
| 12 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 14 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 15 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 19 | 0146-461 | WASHER PLT | 1 | $21.95 | |
| 20 | 0146-452 | SPACER | 1 | $4.95 | |
| 21 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 22 | 0136-299 | KIT FACE FXD MI | 1 | $164.95 | |
| 23 | 0646-032 | PLATE COVER | 1 | $177.95 | |
| 25 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 26 | 0146-700 | BUSHING COMET DRVE | 1 | $75.95 |
