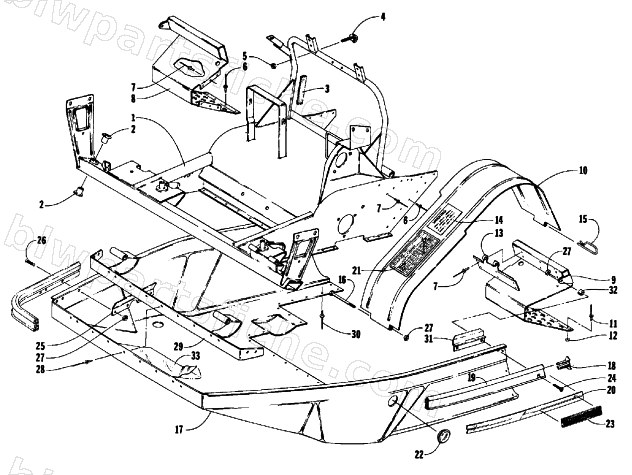

1986 Arctic Cat JAG — BELLY PAN AND FRONT FRAME
1986 JAG
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 5 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 6 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 9 | 0116-905 | FOOTREST-LEFT | 1 | $75.95 | |
| 11 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 12 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 15 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 16 | 8001-056 | SCREW,CAP-HH 1/4-20X5.0 G2 Z&Y | 1 | $1.09 | |
| 18 | 0115-702 | END CAP, RR BUM RH | 1 | $7.95 | |
| 18 | 0115-703 | END CAP, RR BUM LH | 1 | $7.95 | |
| 19 | 0719-001 | BUMPER, FRONT | 1 | $208.95 | |
| 20 | 0212-539 | DECAL, FR BUMPER | 1 | $29.95 | |
| 21 | 0611-095 | DECAL, JET CHART | 1 | $6.95 | |
| 24 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 26 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 30 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 31 | 0115-635 | HOOD,CHANNEL | 1 | $21.95 | |
| 32 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 33 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 |
