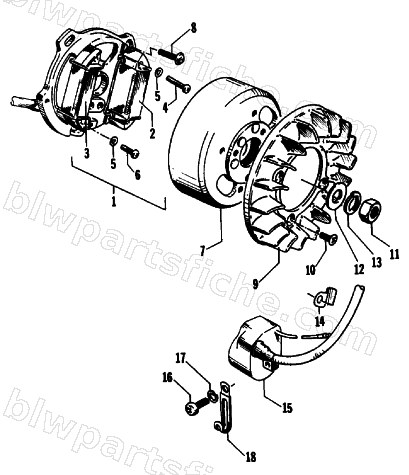

MAGNETO
1986 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3003-146 | COIL, LIGHTING | 1 | $128.95 | |
| 3 | 3003-147 | COIL, PRIMARY | 1 | $119.95 | |
| 4 | 3002-711 | SCREW,PN HD M4.7X25 CR | 1 | $0.65 | |
| 5 | 3007-847 | WASHER,LOCK-4MM | 1 | $3.16 | |
| 6 | 3003-270 | SCREW,MAGNETO-M4X16 | 1 | $0.45 | |
| 7 | 3003-145 | ROTOR | 1 | $709.95 | |
| 8 | 3002-453 | SCREW,M5-.8 CR | 1 | $2.06 | |
| 9 | 3002-490 | FAN,COOLING | 1 | $63.95 | |
| 10 | 3007-627 | SCREW,M5X12 | 1 | $2.61 | |
| 11 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 | |
| 13 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 14 | 3002-464 | CLAMP M12-CABLE | 1 | $4.95 | |
| 16 | 3002-349 | SCREW,PN HD M6-1X20 CR | 1 | $1.95 | |
| 17 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 18 | 3002-465 | CLAMP,M6-CABLE | 1 | $1.95 |
