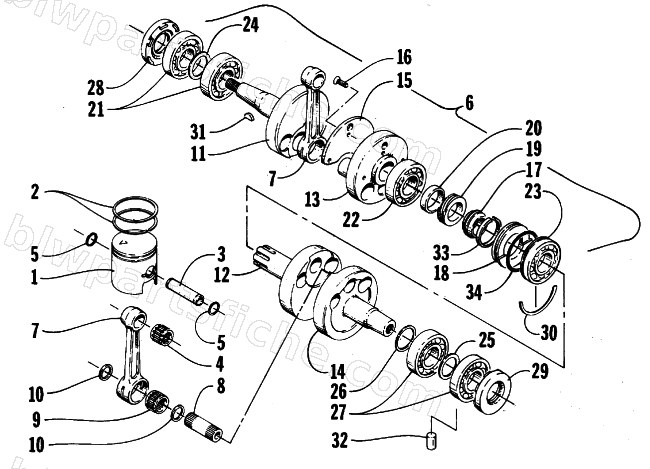

1986 Arctic Cat PANTERA — PISTON AND CRANKSHAFT
1986 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-586 | PISTON ASSY.( 440 L/C ) | 1 | $300.95 | |
| 2 | 3002-738 | RING SET,440L/C | 1 | $73.95 | |
| 3 | 3003-732 | PIN,PISTON | 1 | $32.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 6 | 3003-213 | CRANKSHAFT ASSY | 1 | $1,791.95 | |
| 7 | 3003-305 | ROD,CONNECTING | 1 | $268.95 | |
| 8 | 3002-409 | PIN,CRANK | 1 | $95.95 | |
| 9 | 3004-514 | BEARING,LOWER ROD,M24X30X20 | 1 | $121.95 | |
| 10 | 3002-590 | WASHER,FLAT M24 | 1 | $15.11 | |
| 12 | 3003-160 | CRANKSHAFT, CENTER | 1 | $268.95 | |
| 13 | 3003-161 | WHEEL, CRANKSHAFT | 1 | $538.95 | |
| 14 | 3002-417 | CRANKSHAFT,LH | 1 | $459.95 | |
| 15 | 3002-882 | BALANCER, CRANKSHAFT | 1 | $30.95 | |
| 16 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 17 | 3003-171 | RACE, CRANKSHAFT SEAL | 1 | $49.95 | |
| 18 | 3003-306 | RETAINER,SEAL | 1 | $46.95 | |
| 19 | 3005-373 | GEAR, OIL PUMP DRIVE | 1 | $94.95 | |
| 20 | 3002-827 | SPACER,M30 | 1 | $22.95 | |
| 21 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 22 | 3003-164 | BEARING, CRANKSHAFT,BALL,M30X72X16 | 1 | $108.95 | |
| 24 | 3005-168 | SHIM,30MM | 1 | $6.95 | |
| 25 | 3005-321 | SHIM,WASHER-M35-45 | 1 | $6.95 | |
| 26 | 3002-402 | WASHER,M40 | 1 | $1.95 | |
| 27 | 3002-404 | BEARING,BALL,M35X75X17 | 1 | $128.95 | |
| 28 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 29 | 3002-355 | SEAL,CRANKSHAFT-LH M35 | 1 | $49.95 | |
| 30 | 3003-216 | C-RING, CRANKSHAFT,M72 | 1 | $6.06 | |
| 31 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 32 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 33 | 3003-112 | RING, CENTER | 1 | $23.39 | |
| 34 | 3003-245 | O-RING | 1 | $9.95 |
