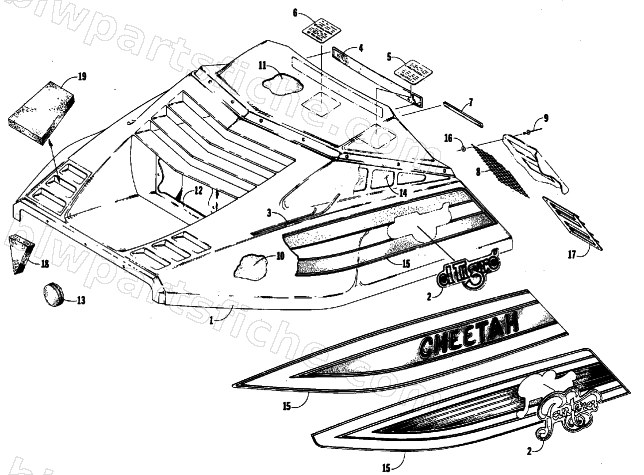

1987 Arctic Cat CHEETAH F/C — HOOD ASSEMBLY
1987 CHEETAH F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-006 | HOOD | 1 | $1,045.95 | |
| 1 | 0718-023 | HOOD W/DECALS-CH F/C | 1 | $1,040.95 | |
| 8 | 0115-632 | VENT GUARD 81 ET 6 RH | 1 | $39.95 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 10 | 0617-008 | FOAM, HOOD | 1 | $14.95 | |
| 16 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
