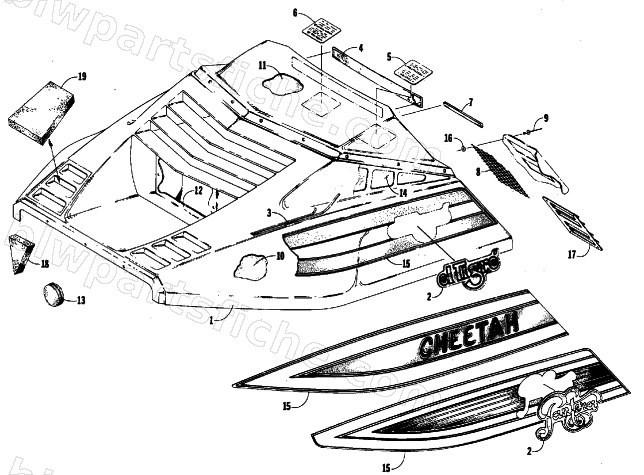

1987 Arctic Cat CHEETAH L/C — HOOD ASSEMBLY
1987 CHEETAH L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 8 | 0115-632 | VENT GUARD 81 ET 6 RH | 1 | $39.95 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 10 | 0717-007 | FOAM, HOOD-RS | 1 | $33.95 | |
| 11 | 0617-007 | FOAM,HOOD-RADIATOR | 1 | $12.99 | |
| 16 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0606-150 | LOUVER,AIR PLENUM | 1 | $64.95 | |
| 17 | 0606-149 | LOUVER,AIR PLENUM | 1 | $46.95 | |
| 18 | 0617-011 | FOAM,AIR DUCT | 1 | $8.95 | |
| 19 | 0617-025 | FOAM,AIR INTAKE-PA | 1 | $19.25 |
