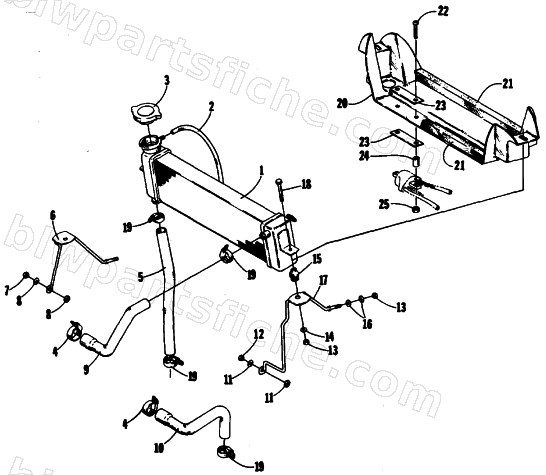

1987 Arctic Cat EL TIGRE (530) — COOLING SYSTEM
1987 EL TIGRE (530)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 4 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 6 | 0606-100 | BRACKET,RAD-RH | 1 | $23.95 | |
| 7 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 9 | 0610-014 | HOSE, ENG. TO RAD. | 1 | $39.95 | |
| 11 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 15 | 0123-868 | MOUNT RUBBER-RADIATOR | 1 | $57.95 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0606-101 | BRACKET,RAD L.H. | 1 | $21.95 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 20 | 0706-097 | AIR DUCT,RADIATOR | 1 | $125.95 | |
| 21 | 0617-035 | FOAM SEAL, AIRBOX TO GASTANK | 1 | $23.95 | |
| 22 | 0623-055 | SCREW,M6X1X45 | 1 | $0.85 | |
| 23 | 0606-129 | PLATE,BACKING-COIL | 1 | $2.95 | |
| 24 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 25 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 |
