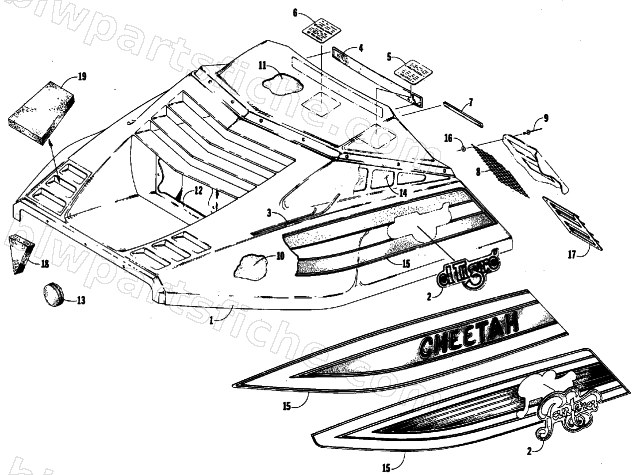

1987 Arctic Cat EL TIGRE (530) — HOOD ASSEMBLY
1987 EL TIGRE (530)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-043 | HOOD W/DECALS-88 ET 6000 | 1 | $1,248.95 | |
| 3 | 0611-107 | PINSTRIPE, 25' | 1 | $71.95 | |
| 4 | 0611-298 | DECAL,AFS-HOOD ET6 | 1 | $20.95 | |
| 6 | 0611-094 | DECAL,WARNING | 1 | $6.95 | |
| 8 | 0115-632 | VENT GUARD 81 ET 6 RH | 1 | $39.95 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 10 | 0717-007 | FOAM, HOOD-RS | 1 | $33.95 | |
| 11 | 0617-007 | FOAM,HOOD-RADIATOR | 1 | $12.99 | |
| 15 | 0611-124 | DECAL,HOOD-R.H. | 1 | $94.95 | |
| 15 | 0611-123 | DECAL,HOOD-L.H. | 1 | $62.59 | |
| 16 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0606-150 | LOUVER,AIR PLENUM | 1 | $64.95 | |
| 17 | 0606-149 | LOUVER,AIR PLENUM | 1 | $46.95 | |
| 18 | 0617-011 | FOAM,AIR DUCT | 1 | $8.95 | |
| 19 | 0617-025 | FOAM,AIR INTAKE-PA | 1 | $19.25 |
