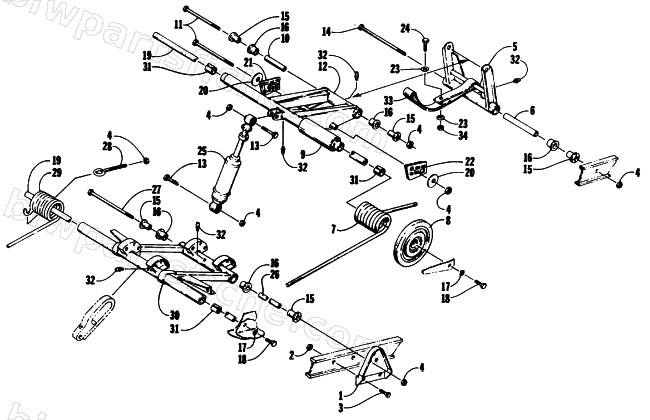

REAR SUSPENSION ARM ASSEMBLIES
1988 CHEETAH (500 F/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 3 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 1704-196 | ARM,REAR-PTD BLK | 1 | $240.95 | |
| 6 | 0604-059 | TUBE,AXLE-REAR ARM | 1 | $33.95 | |
| 7 | 1704-174 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $71.95 | |
| 7 | 1704-175 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $71.95 | |
| 8 | 0604-061 | WHEEL,IDLER | 1 | $50.95 | |
| 9 | 0114-160 | SLEEVE,SPRING | 1 | $12.35 | |
| 10 | 0604-070 | AXLE, IDLER ARM | 1 | $26.95 | |
| 11 | 8002-239 | SCREW,CAP-HH 3/8-16 X6.50 G5 Z&Y | 1 | $2.47 | |
| 12 | 0704-028 | WELDMENT,IDLER ARM | 1 | $288.95 | |
| 13 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 14 | 0623-007 | HHCS 3/8-16X8 1/2 GR5 | 1 | $8.95 | |
| 15 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 16 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 17 | 8051-278 | WASHER,SPR LOCK-3/8 .377X.688X.115 BLK | 1 | $2.95 | |
| 18 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 19 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 20 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 21 | 0114-062 | ADJUSTER,RH RR SUSP | 1 | $37.95 | |
| 22 | 0114-063 | ADJUSTER,LH RR SUSP | 1 | $37.95 | |
| 23 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 24 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 25 | 0604-160 | SHOCK ABSORBER,RR ARM | 1 | $129.95 | |
| 26 | 0604-073 | AXLE, FRONT ARM | 1 | $79.95 | |
| 27 | 0623-033 | HHCS 3/8-16X9 GR5 | 1 | $5.95 | |
| 28 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 29 | 1704-162 | SPRING,SUSPENSION- FRT-RH PTD BLK | 1 | $59.95 | |
| 29 | 1704-163 | SPRING,SUSPENSION- FRT-LH PTD BLK | 1 | $57.95 | |
| 30 | 0704-033 | ARM,FRONT WELDMENT | 1 | $274.95 | |
| 31 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 32 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 33 | 0604-101 | STRAP,LIMITER | 1 | $24.95 | |
| 34 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
