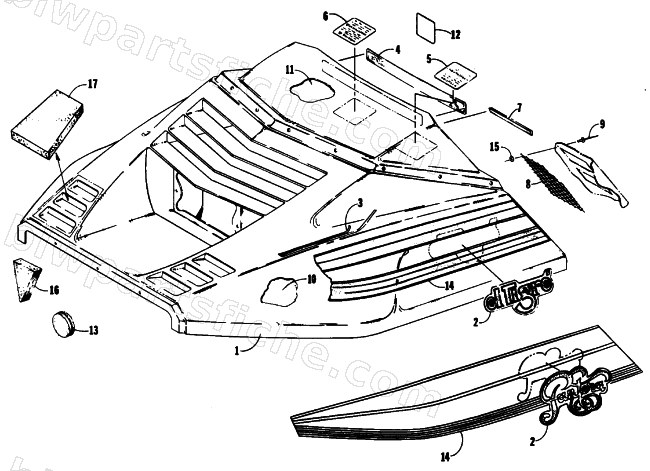

1988 Arctic Cat EL TIGRE 6000 (530 L/C) — HOOD ASSEMBLY
1988 EL TIGRE 6000 (530 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-043 | HOOD W/DECALS-88 ET 6000 | 1 | $1,248.95 | |
| 2 | 0212-127 | DECAL,PANTERA | 1 | $27.95 | |
| 4 | 0611-298 | DECAL,AFS-HOOD ET6 | 1 | $20.95 | |
| 6 | 0611-094 | DECAL,WARNING | 1 | $6.95 | |
| 8 | 0115-632 | VENT GUARD 81 ET 6 RH | 1 | $39.95 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 10 | 0717-007 | FOAM, HOOD-RS | 1 | $33.95 | |
| 11 | 0617-007 | FOAM,HOOD-RADIATOR | 1 | $12.99 | |
| 12 | 0611-307 | DECAL,WRNG-BATTERY | 1 | $4.95 | |
| 14 | 0611-266 | DECAL,HOOD SIDE-RH | 1 | $98.95 | |
| 14 | 0611-267 | DECAL,HOOD SIDE-LH | 1 | $98.95 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 0617-011 | FOAM,AIR DUCT | 1 | $8.95 | |
| 17 | 0617-025 | FOAM,AIR INTAKE-PA | 1 | $19.25 |
