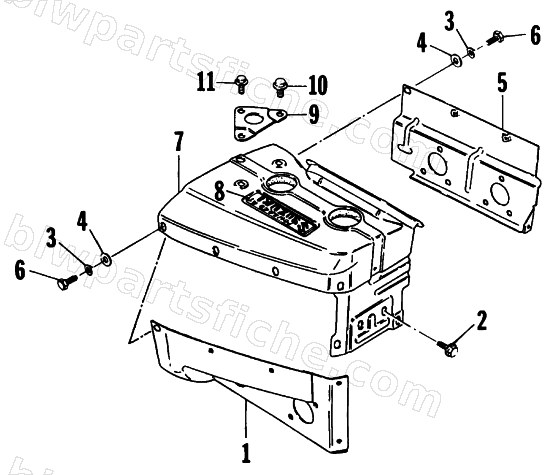

1988 Arctic Cat JAG (440 F/C) — CYLINDER COWLING
1988 JAG (440 F/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-851 | COWLING-VENT-FRONT | 1 | $77.95 | |
| 2 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 3 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 4 | 3004-050 | WASHER,6MM | 1 | $3.16 | |
| 5 | 3003-852 | CLAMP,M22 | 1 | $14.95 | |
| 6 | 3007-392 | BOLT | 1 | $3.95 | |
| 7 | 3005-010 | COWLING, VENTILATION UPPER | 1 | $184.95 | |
| 9 | 3003-072 | BRACKET, CYL. COULING | 1 | $16.95 | |
| 10 | 3007-407 | BOLT,GROUND | 1 | $3.16 |
