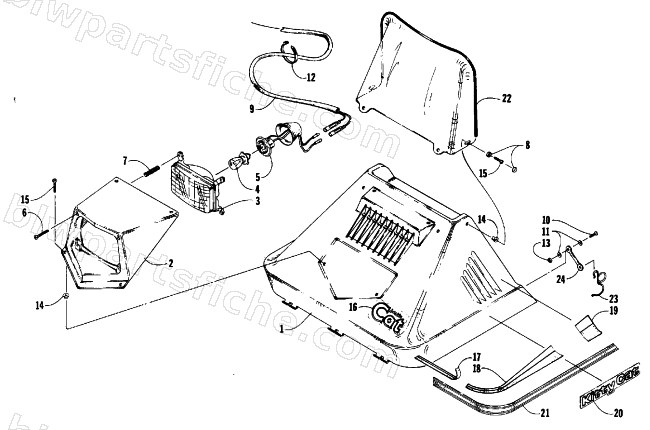

1988 Arctic Cat KITTY CAT (60 F/C) — HOOD ASSEMBLY
1988 KITTY CAT (60 F/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-056 | HOOD-DRILLED | 1 | $224.95 | |
| 2 | 0302-072 | HEADLIGHT BEZEL | 1 | $167.95 | |
| 3 | 0609-003 | HEADLAMP ASSY | 1 | $187.95 | |
| 4 | 0609-004 | BULB, HEADLIGHT | 1 | $17.87 | |
| 7 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 8 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 9 | 0686-020 | HARNESS,WIRING LIGHT | 1 | $58.95 | |
| 10 | 0123-636 | SCREW,MACH TR HD 6-32X5/8 SLOT | 1 | $0.68 | |
| 11 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 8041-126 | NUT,HEX THIN LOCK-NYL 6-32 Z&Y | 1 | $0.26 | |
| 14 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 15 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 16 | 0212-549 | DECAL, ARCTIC CAT | 1 | $18.95 | |
| 18 | 0302-150 | DECAL,HOOD KITTY CAT RH | 1 | $35.95 | |
| 18 | 0302-151 | DECAL,HOOD KITTY CAT LH | 1 | $30.95 | |
| 19 | 0302-152 | DECAL,HOOD RH | 1 | $15.95 | |
| 19 | 0302-153 | DECAL,HOOD LH | 1 | $22.95 | |
| 20 | 0211-950 | DECAL,KITTY CAT | 1 | $76.95 | |
| 22 | 0606-339 | WINDSHIELD,SMOKE {KITTY CAT} | 1 | $108.95 | |
| 23 | 0300-155 | HOOK,SPRING LATCH | 1 | $16.49 |
