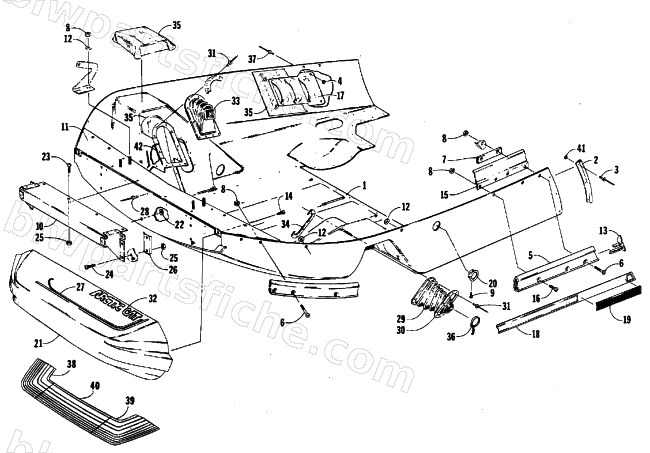

1988 Arctic Cat PANTERA (440 L/C) — BELLY PAN AND NOSE CONE ASSEMBLIES
1988 PANTERA (440 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-084 | BELLYPAN,MFD BROWN | 1 | $689.95 | |
| 2 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 3 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0706-029 | BUMPER,LH FRONT | 1 | $116.95 | |
| 5 | 0706-026 | BUMPER, RH FRONT | 1 | $167.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 10 | 0706-056 | BUMPER,FRONT-ASSY | 1 | $180.95 | |
| 11 | 0706-189 | SUPPORT,HINGE-BELLYPAN | 1 | $126.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 18 | 0611-016 | DECAL, RH BUMPER | 1 | $31.95 | |
| 18 | 0611-017 | DECAL, LH BUMPER | 1 | $31.95 | |
| 20 | 0115-520 | PLUG PAN | 1 | $5.23 | |
| 21 | 0606-335 | NOSECONE,BROWN | 1 | $451.95 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 23 | 8007-397 | SCREW,MACH-CRTH 10-24X.50 G2 Z&Y | 1 | $0.15 | |
| 24 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 0606-044 | PLATE, BACKING | 1 | $3.95 | |
| 28 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 30 | 0605-010 | RING, STEERING | 1 | $24.77 | |
| 31 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 34 | 0605-015 | RING, REINFORCMENT | 1 | $29.95 | |
| 35 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 0611-304 | DECAL,NOSECONE-RH | 1 | $21.95 | |
| 39 | 0611-305 | DECAL,NOSECONE-LH | 1 | $21.95 | |
| 40 | 0611-241 | DECAL,NOSECONE-CTR | 1 | $36.95 | |
| 41 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 42 | 0603-053 | RING, SUSPENS BT | 1 | $23.39 |
