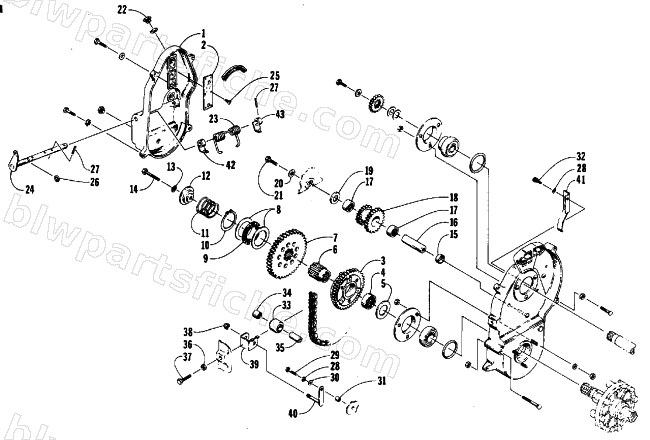

1988 Arctic Cat PANTERA (440 L/C) — DRIVE/REVERSE DROPACASE ASSEMBLY
1988 PANTERA (440 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0602-228 | COVER,DROPCASE-REV-MACH | 1 | $130.95 | |
| 2 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 3 | 0702-065 | GEAR SET,39T REPLACEMENT | 1 | $521.95 | |
| 3 | 0702-066 | GEAR SET,35T REPLACEMENT | 1 | $606.95 | |
| 4 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 5 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 6 | 0602-013 | SHAFT,EXTENSION | 1 | $152.95 | |
| 7 | 0602-100 | GEAR,REVERSE-55T | 1 | $407.95 | |
| 8 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 9 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 10 | 0602-024 | RING,RETAINING | 1 | $3.99 | |
| 11 | 0602-103 | SPRING,RETURN COMP | 1 | $6.20 | |
| 12 | 1602-047 | RETAINER, EXTENSION SHAFT | 1 | $77.95 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 14 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 15 | 0602-093 | SPACER,REV SHAFT-.647X.812X.300 THICK | 1 | $9.59 | |
| 16 | 0602-094 | SHAFT, REV IDLER | 1 | $42.95 | |
| 17 | 0602-018 | BEARING,DC-.625 | 1 | $19.25 | |
| 18 | 0702-002 | IDLER,REVERSE W/BG | 1 | $407.95 | |
| 19 | 0602-031 | SPACER,IDLER SHAFT | 1 | $13.95 | |
| 20 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 21 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 23 | 0602-019 | FORK,SHIFT | 1 | $69.95 | |
| 25 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 26 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 27 | 8070-314 | PIN,SPRING-3/16 X 1 SLOTTED P&O | 1 | $0.95 | |
| 28 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 32 | 8005-490 | SCREW, CAP-HSH 1/4-20X.75 Z&Y | 1 | $1.95 | |
| 33 | 0702-067 | ROLLER,CHAIN TIGHTENER-ASSY | 1 | $128.95 | |
| 34 | 0602-036 | BEARING,DC-.500 | 1 | $15.95 | |
| 35 | 0602-095 | SHAFT,CHAIN ROLLER | 1 | $36.95 | |
| 36 | 0123-150 | NUT,JAM 3/8-16 | 1 | $0.40 | |
| 37 | 0123-731 | SCREW,CAP HEX 3/8-16X2 THD | 1 | $0.85 | |
| 38 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 39 | 0602-091 | BRKT,CHAIN ROLLER | 1 | $51.95 | |
| 40 | 0702-022 | WLDMT,PIN & LINK | 1 | $39.95 | |
| 41 | 0602-132 | BRACKET,CHAIN BACKING | 1 | $26.95 |
