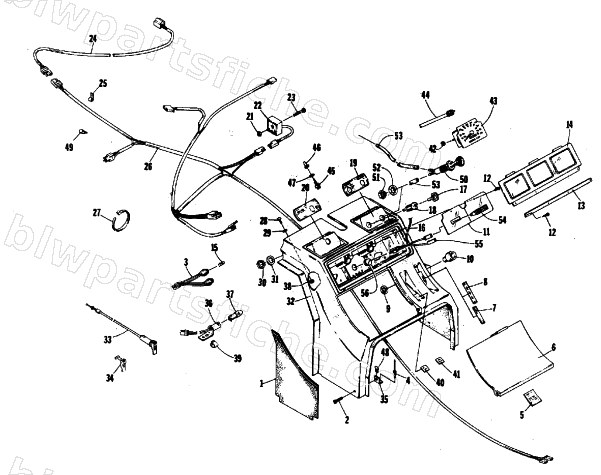

1988 Arctic Cat SUPER JAG (440) — CONSOLE AND WIRING ASSEMBLIES
1988 SUPER JAG (440)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0609-023 | HARNESS,CONSOLE | 1 | $41.95 | |
| 4 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0611-164 | DECAL,GAS WARNING | 1 | $10.95 | |
| 6 | 0115-342 | DOOR,CONSOLE-BLACK | 1 | $58.95 | |
| 9 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 10 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 12 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 14 | 0117-385 | LENS,CONSOLE ASSY | 1 | $124.95 | |
| 15 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 17 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 18 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 0686-014 | HARNESS,MAIN IGN. | 1 | $156.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 30 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 31 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 32 | 0706-101 | CONSOLE,FABRICATED | 1 | $379.95 | |
| 33 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 34 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 37 | 0115-385 | BULB,CONSOLE | 1 | $10.97 | |
| 38 | 8040-186 | NUT,HEX LOCK-NYL 8-32 Z&Y | 1 | $0.15 | |
| 39 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 43 | 0620-015 | SPEEDOMETER HEAD | 1 | $173.95 | |
| 44 | 0120-286 | CABLE,SPEEDOMETER DRI | 1 | $102.95 | |
| 45 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 46 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 47 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 48 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 49 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 50 | 0670-006 | PRIMER | 1 | $70.95 | |
| 52 | 0623-017 | WASHER,INT STAR3/4 | 1 | $0.95 | |
| 53 | 0610-012 | HOSE, PRIMER 25' | 1 | $126.95 | |
| 55 | 0686-011 | HARNESS,OIL LAMP | 1 | $10.95 | |
| 56 | 0620-027 | GROMMET,CONSOLE | 1 | $1.95 |
