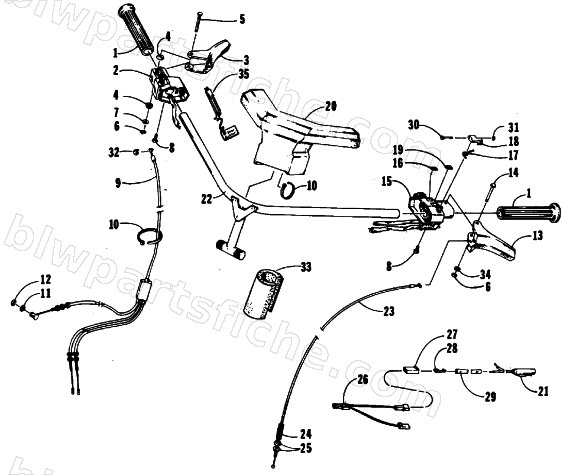

1988 Arctic Cat WILDCAT 650 (650 L/C) — HANDLEBAR ASSEMBLY
1988 WILDCAT 650 (650 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 2 | 0709-029 | SWITCH,THROTTLE ASSY W/HARNESS | 1 | $201.95 | |
| 3 | 0609-020 | LEVER,THROTTLE-VM38 | 1 | $31.95 | |
| 4 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 5 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 6 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 7 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 8 | 0609-043 | SCREW,RETAINING | 1 | $0.35 | |
| 9 | 0687-012 | CABLE,THROTTLE-VM38 | 1 | $206.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0124-056 | WASHER | 1 | $13.73 | |
| 12 | 0124-057 | E-RING | 1 | $1.64 | |
| 13 | 0609-042 | LEVER,BRAKE | 1 | $31.95 | |
| 14 | 0609-041 | PIN,BRAKE LEVER | 1 | $2.61 | |
| 15 | 0609-044 | HOUSING,BRK CTL -W/SWITCH | 1 | $201.95 | |
| 17 | 0609-049 | SPRING,ACTUATOR | 1 | $3.95 | |
| 18 | 0609-048 | ACTUATOR,PARK BRKE | 1 | $14.95 | |
| 19 | 0211-919 | DECAL, PARK BUTTON | 1 | $7.95 | |
| 20 | 0705-023 | PAD,HANDLEBAR | 1 | $98.95 | |
| 21 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 | |
| 22 | 0705-016 | HANDLEBAR,STEERING | 1 | $178.95 | |
| 23 | 0187-202 | CABLE,BRAKE | 1 | $76.95 | |
| 24 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 25 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 26 | 0230-030 | HARNESS,WIRING HANDLEBAR | 1 | $14.95 | |
| 27 | 0230-015 | CONN BODY RECPT 1CON | 1 | $1.95 | |
| 28 | 0231-007 | TERMINAL FMALE 2 COND | 1 | $2.95 | |
| 29 | 0706-528 | GEON TUBING-10 FT ROLL | 1 | $13.95 | |
| 30 | 0609-050 | PIN,RETAINING PARK | 1 | $1.95 | |
| 31 | 0609-051 | RING,RETAINING PRK | 1 | $1.95 | |
| 32 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 33 | 0706-202 | WRAP,STRG POST (BLK) W/FOAM | 1 | $52.95 | |
| 34 | 0609-037 | WASHER,FLAT | 1 | $0.25 | |
| 35 | 0709-011 | PLUG,BY-PASS-IGNITION | 1 | $20.95 |
