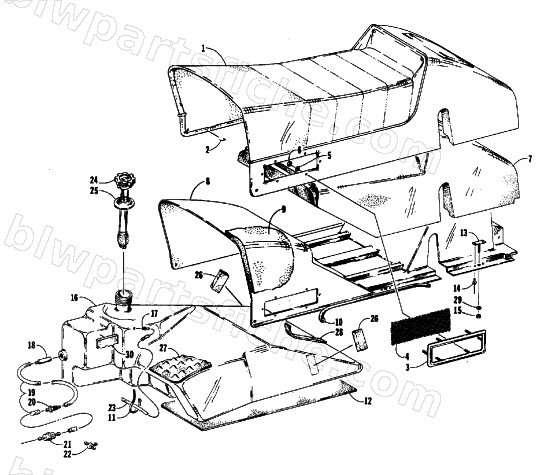

1988 Arctic Cat WILDCAT 650 (650 L/C) — SEAT AND GAS TANK ASSEMBLIES
1988 WILDCAT 650 (650 L/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-186 | COVER, SEAT | 1 | $562.95 | |
| 5 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 6 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0670-056 | GAS TANK,BLOW MOLDED | 1 | $142.95 | |
| 17 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 18 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 19 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 19 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 20 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 21 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 22 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 23 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 24 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 25 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 26 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 | |
| 27 | 0617-051 | FOAM,AIR INTAKE-DIMPLED | 1 | $11.95 | |
| 29 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 30 | 0617-043 | PAD,GASTANK-FRONT | 1 | $3.95 |
