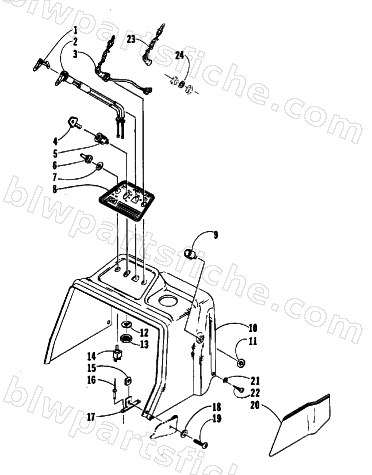

SWITCH AND CONSOLE ASSEMBLY
1988 WILDCAT 650 (650 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 2 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 3 | 0638-887 | KIT, TETHER W/ADAPTER HARNESS(N.C.) | 1 | $46.95 | |
| 4 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 5 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 6 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0611-340 | DECAL,CONSOLE-SWITCH PLATE | 1 | $18.95 | |
| 9 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 13 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 14 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 15 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 16 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 18 | 0124-076 | WSHR, FLAT .271X.635X.051 BL PHOS AND OI | 1 | $0.15 | |
| 19 | 8007-611 | SCREW,MACH-CRTH 1/4-20X.875 G2 BE | 1 | $0.15 | |
| 20 | 0611-344 | DECAL,CONSOLE-RIGHT HAND | 1 | $55.95 | |
| 20 | 0611-345 | DECAL,CONSOLE-LEFT HAND | 1 | $58.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 0623-091 | SCREW,SELF TAPPING | 1 | $0.89 | |
| 23 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 24 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 25 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 |
