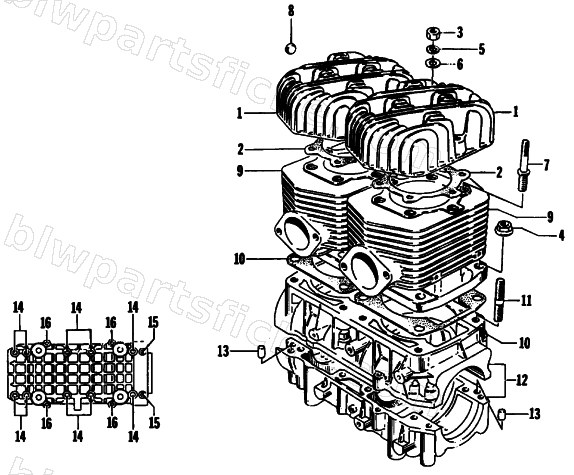

1989 Arctic Cat COUGAR MOUNTAIN CAT — CRANKCASE AND CYLINDER
1989 COUGAR MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-119 | HEAD, CYLINDER(500 FC) | 1 | $333.95 | |
| 2 | 3004-131 | GASKET, HEAD-500 F/C | 1 | $43.95 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3003-120 | BOLT, STUD,8MM | 1 | $5.95 | |
| 8 | 3003-286 | PAD,CYL HEAD | 1 | $6.95 | |
| 9 | 3003-633 | CYLINDER, 500 F/C 56 HP | 1 | $1,206.95 | |
| 10 | 3002-367 | R/B 3003-505 | 1 | $3.25 | |
| 12 | 3002-929 | CRANKCASE ASSY (500 FC) | 1 | $977.95 | |
| 13 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 14 | 3002-930 | BOLT,HEX FLGD M8X75 ZN | 1 | $3.95 | |
| 15 | 3006-037 | BOLT,M6X70 | 1 | $3.44 | |
| 16 | 3007-411 | BOLT | 1 | $3.16 |
