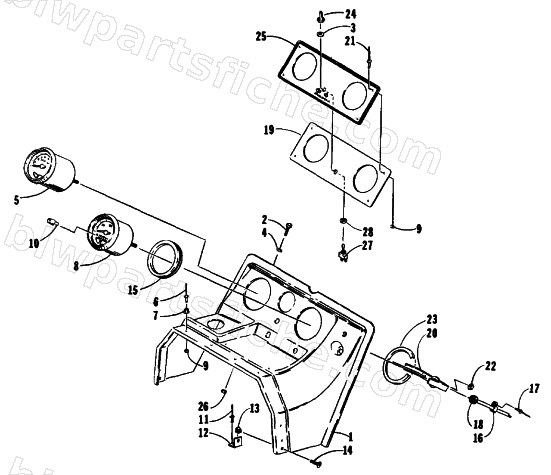

1989 Arctic Cat EL TIGRE 6000 (530 L/C) — CONSOLE AND INSTRUMENTS
1989 EL TIGRE 6000 (530 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0117-031 | CONSOLE INSTRUMENT | 1 | $94.95 | |
| 3 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 4 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 5 | 0620-042 | TACHOMETER W/WARNING LIGHTS & SILVER TRI | 1 | $469.95 | |
| 6 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 0620-041 | SPEEDOMETER W/WARNING LIGHTS & GOLD TRIM | 1 | $303.95 | |
| 9 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 10 | 0620-034 | KNOB,TRIPMETER | 1 | $8.95 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 15 | 0120-362 | CUSHION RUBBER | 1 | $11.95 | |
| 16 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 17 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 18 | 0120-332 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 20 | 0120-457 | BRACKET,SPEEDOMETER-MTG | 1 | $17.87 | |
| 20 | 0120-281 | BRACKET,MTG-TACHOMETER | 1 | $13.73 | |
| 21 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 22 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 23 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 24 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 26 | 8040-186 | NUT,HEX LOCK-NYL 8-32 Z&Y | 1 | $0.15 | |
| 27 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 28 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
