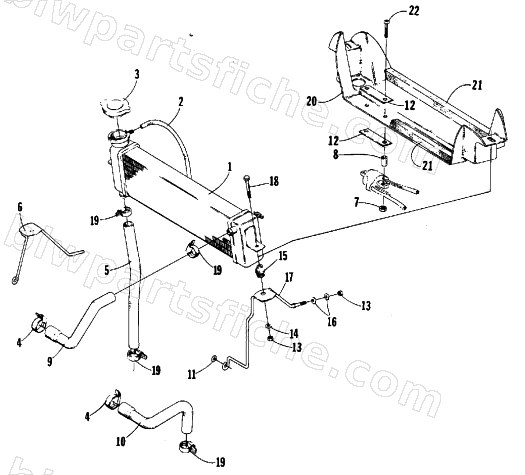

1989 Arctic Cat EL TIGRE 6000 (530 L/C) — COOLING SYSTEM
1989 EL TIGRE 6000 (530 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 4 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 6 | 0606-100 | BRACKET,RAD-RH | 1 | $23.95 | |
| 7 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 8 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 9 | 0610-014 | HOSE, ENG. TO RAD. | 1 | $39.95 | |
| 11 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 12 | 0606-129 | PLATE,BACKING-COIL | 1 | $2.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 15 | 0123-868 | MOUNT RUBBER-RADIATOR | 1 | $57.95 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0606-101 | BRACKET,RAD L.H. | 1 | $21.95 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 20 | 0706-097 | AIR DUCT,RADIATOR | 1 | $125.95 | |
| 21 | 0617-035 | FOAM SEAL, AIRBOX TO GASTANK | 1 | $23.95 | |
| 22 | 0623-055 | SCREW,M6X1X45 | 1 | $0.85 |
