1989 Arctic Cat EL TIGRE 6000 (530 L/C) — ELECTRICAL

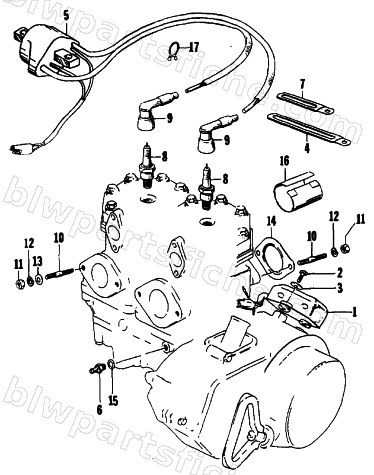

1989 EL TIGRE 6000 (530 L/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-099 | CDI | 1 | $826.95 | |
| 2 | 3003-029 | BOLT, HEX,M6X20 | 1 | $4.54 | |
| 3 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 5 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 6 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 7 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 8 | 0217-804 | SPARK PLUG,IRIDIUM (BR10EIX) SOLID CAP | 1 | $18.95 | |
| 9 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 10 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 11 | 3007-416 | NUT | 1 | $2.75 | |
| 12 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 13 | 3423-204 | WASHER | 1 | $1.95 | |
| 14 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 15 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 16 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 17 | 3002-278 | CLAMP,M6 | 1 | $3.95 |
