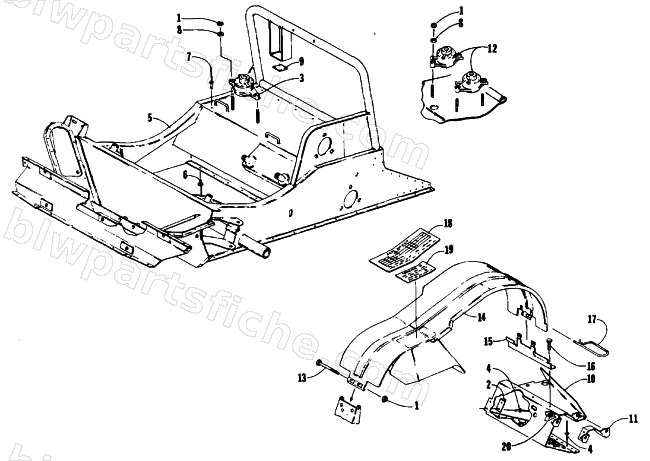

1989 Arctic Cat EL TIGRE 6000 (530 L/C) — FRONT FRAME AND FOOTREST ASSEMBLY
1989 EL TIGRE 6000 (530 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 12 | 0115-631 | FUEL PUMP(DF52-89) | 1 | $158.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 15 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 16 | 8002-237 | SCREW,CAP-HH 3/8-16 X5.50 G5 Z&Y | 1 | $3.16 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 0611-501 | DECAL,JET CHART-89ET6000 | 1 | $6.95 |
