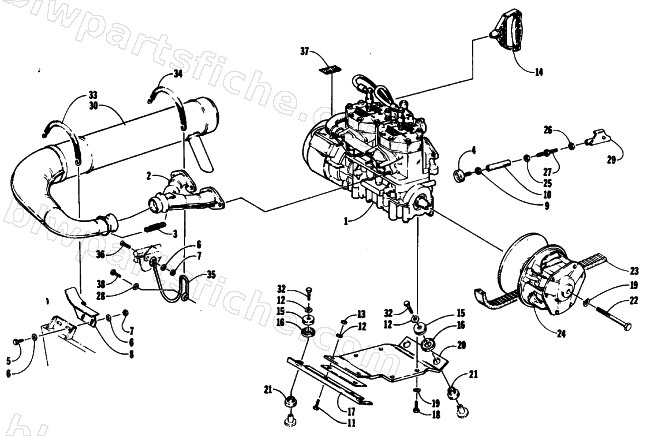

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — ENGINE AND RELATED PARTS
1989 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-058 | ENGINE,530 L/C D/T-1991 | 1 | $5,351.95 | |
| 2 | 0112-616 | MANIFOLD,EXHAUST-WELDT | 1 | $151.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 4 | 0608-008 | BUMPER,TORQUE {1.176"} 90 DURO -ENGINE | 1 | $14.95 | |
| 5 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0712-007 | RACKET,PULSECHARGER-WELDT | 1 | $11.95 | |
| 9 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 10 | 0608-011 | TUBE,TORQUE ADJUST {2.48"} | 1 | $47.95 | |
| 11 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-003 | ANGLE, SUPPORT | 1 | $150.95 | |
| 18 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0608-005 | PLATE, ENGINE | 1 | $138.95 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 0623-115 | BOLT,HEX HD CAP 1/2-20UNFX6.870 | 1 | $21.95 | |
| 23 | 0627-006 | DRIVE BELT, CVT | 1 | $77.95 | |
| 24 | 0725-069 | CLUTCH, DRIVE-ASSY (COMET) | 1 | $1,056.95 | |
| 25 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 26 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 27 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 28 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 29 | 0708-001 | BRKT,TORQUE-WELD'T | 1 | $20.95 | |
| 30 | 0612-073 | PULSECHARGER,EXT | 1 | $806.95 | |
| 31 | 0608-006 | SPACER,ENGINE MTG | 1 | $5.95 | |
| 32 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 33 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 34 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 36 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 38 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 |
