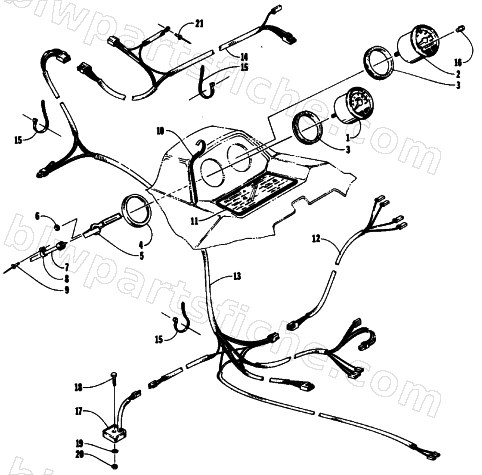

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — INSTRUMENTS AND WIRING ASSEMBLIES
1989 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-042 | TACHOMETER W/WARNING LIGHTS & SILVER TRI | 1 | $469.95 | |
| 2 | 0620-041 | SPEEDOMETER W/WARNING LIGHTS & GOLD TRIM | 1 | $303.95 | |
| 3 | 0120-362 | CUSHION RUBBER | 1 | $11.95 | |
| 4 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 5 | 0120-457 | BRACKET,SPEEDOMETER-MTG | 1 | $17.87 | |
| 5 | 0120-281 | BRACKET,MTG-TACHOMETER | 1 | $13.73 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0620-030 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 8 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 9 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 11 | 0611-469 | DECAL,WARNING-FUEL & SEATING CAPACITY | 1 | $37.95 | |
| 12 | 0686-026 | HARNESS,CONSOLE | 1 | $49.95 | |
| 13 | 0686-056 | HARNESS,MAIN WIRING | 1 | $221.95 | |
| 14 | 0686-052 | HARNESS,HOOD-HEADLIGHT & INST | 1 | $75.95 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0620-034 | KNOB,TRIPMETER | 1 | $8.95 | |
| 17 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 18 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 19 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
