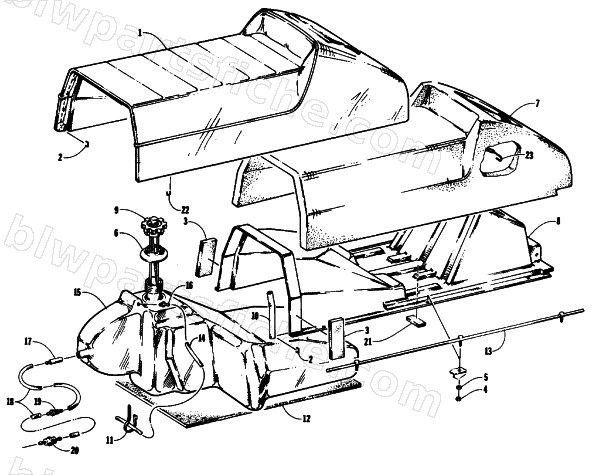

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — SEAT AND GAS TANK ASSEMBLIES
1989 EL TIGRE EXT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0617-062 | FOAM,SEAT BASE-1/2X2X4.25 | 1 | $2.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 7 | 0706-277 | CUSHION, FOAM | 1 | $279.95 | |
| 8 | 0606-421 | BASE,SEAT-PLASTIC | 1 | $297.95 | |
| 9 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0617-061 | PAD,GASTANK-BOTTOM | 1 | $20.95 | |
| 14 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 17 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 18 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 19 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 20 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 21 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 |
