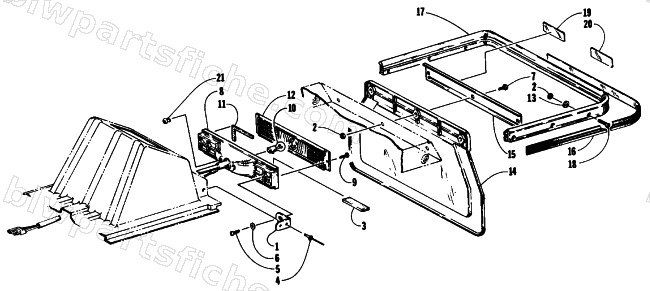

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — TAILLIGHT AND REAR BUMPER
1989 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 7 | 8011-071 | BOLT,CRG 1/4-20X.875 GR1 BLK | 1 | $0.25 | |
| 8 | 0709-025 | TAILLIGHT ASSY-SWED BLK/GLD | 1 | $116.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0606-316 | SNOWFLAP,PLASTIC-GOLD | 1 | $45.95 | |
| 16 | 0611-542 | DECAL,REAR BUMPER | 1 | $14.95 | |
| 17 | 0706-292 | BUMPER,REAR | 1 | $107.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 21 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 |
