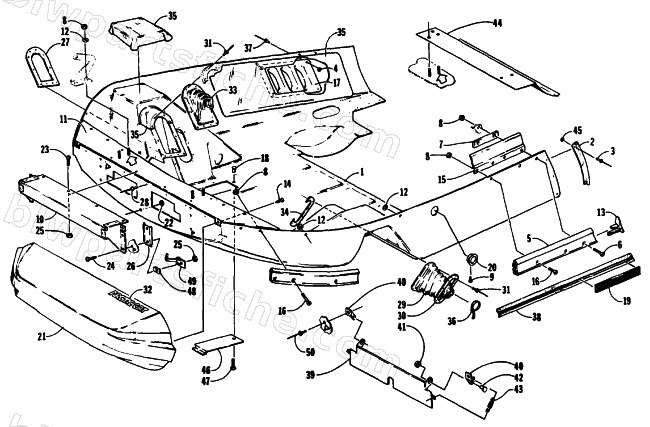

BELLY PAN AND NOSE CONE ASSEMBLIES
1989 EL TIGRE EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-531 | BELLYPAN W/O EXHAUST HOLE | 1 | $754.95 | |
| 2 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 3 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0706-029 | BUMPER,LH FRONT | 1 | $116.95 | |
| 5 | 0706-026 | BUMPER, RH FRONT | 1 | $167.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 10 | 0706-056 | BUMPER,FRONT-ASSY | 1 | $180.95 | |
| 11 | 0706-189 | SUPPORT,HINGE-BELLYPAN | 1 | $126.95 | |
| 12 | 0124-076 | WSHR, FLAT .271X.635X.051 BL PHOS AND OI | 1 | $0.15 | |
| 16 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 17 | 0706-089 | LOUVER,PAINT BLACK | 1 | $37.95 | |
| 18 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 23 | 8007-397 | SCREW,MACH-CRTH 10-24X.50 G2 Z&Y | 1 | $0.15 | |
| 24 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 0606-044 | PLATE, BACKING | 1 | $3.95 | |
| 27 | 0603-053 | RING, SUSPENS BT | 1 | $23.39 | |
| 28 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 30 | 0605-092 | RING,STEERING BOOT | 1 | $21.95 | |
| 31 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 32 | 0611-249 | DECAL,ARCTIC CAT-GREEN | 1 | $20.95 | |
| 34 | 0605-091 | RING,REINFORCEMENT-STRG BOOT | 1 | $24.77 | |
| 35 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 0611-450 | DECAL,FRONT BUMPER-RH | 1 | $38.95 | |
| 39 | 0606-581 | DOOR,VENT-FRONT | 1 | $17.95 | |
| 40 | 0606-280 | BRACKET,HINGE-RH FRONT | 1 | $14.95 | |
| 40 | 0606-281 | BRACKET,HINGE-LH FRONT | 1 | $14.95 | |
| 43 | 0623-100 | SPRING,DOOR-BELLY PAN VENT | 1 | $3.95 | |
| 44 | 0606-289 | SHIELD,HEAT-FRONT SUSPENSION | 1 | $53.95 | |
| 45 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 46 | 0606-390 | PLATE,INSPECTION-BELLY PAN | 1 | $13.73 | |
| 47 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 49 | 0623-135 | RETAINER,DOOR-NOSECONE | 1 | $3.95 | |
| 50 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
