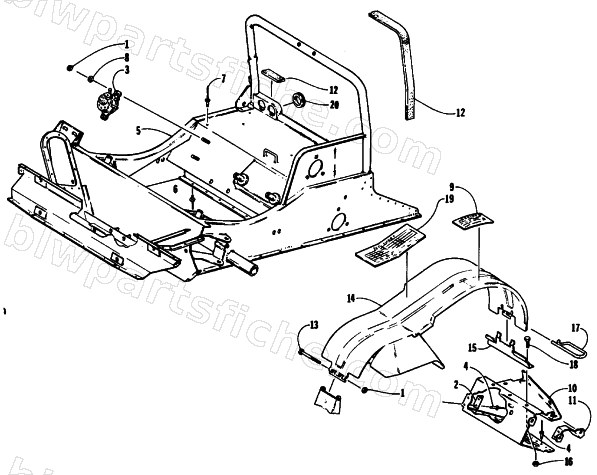

1989 Arctic Cat EL TIGRE EXT — FRONT FRAME AND FOOTREST ASSEMBLY
1989 EL TIGRE EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0670-086 | FUEL PUMP DF52-107 | 1 | $142.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-052 | FRONT END-WELDMENT | 1 | $871.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 15 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 19 | 0611-461 | DECAL,JET CHART-1989 ELTIGRE EXT | 1 | $5.95 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 |
