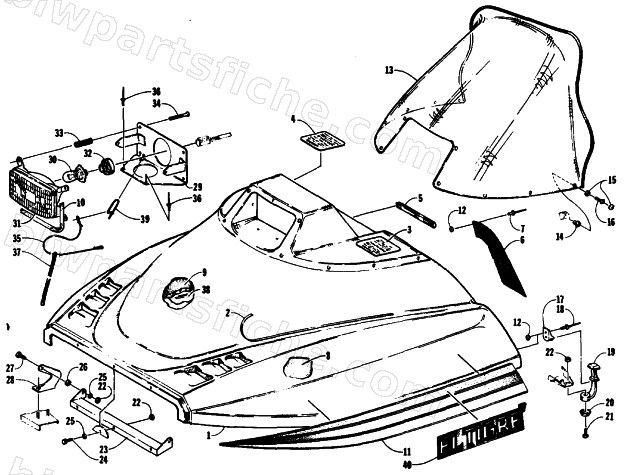

1989 Arctic Cat EL TIGRE EXT — HOOD ASSEMBLY
1989 EL TIGRE EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-059 | HOOD | 1 | $1,045.95 | |
| 1 | 0718-066 | HOOD W/DECALS-89 ET EXT | 1 | $1,040.95 | |
| 2 | 0611-348 | DECAL,PINSTRIPE 25' ROLL | 1 | $81.95 | |
| 4 | 0611-094 | DECAL,WARNING | 1 | $6.95 | |
| 6 | 0606-296 | SCREEN,HOOD VENT-RH | 1 | $34.95 | |
| 6 | 0606-297 | SCREEN,HOOD VENT-LH | 1 | $49.95 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 9 | 0617-038 | FOAM,HOOD-CENTER | 1 | $20.95 | |
| 11 | 0611-466 | DECAL,HOOD SIDE-RH | 1 | $88.95 | |
| 11 | 0611-467 | DECAL,HOOD SIDE-LH | 1 | $94.95 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 15 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 16 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 17 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 19 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 20 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 21 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0706-055 | SUPPORT,HOOD HINGE | 1 | $64.95 | |
| 24 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 0606-042 | HINGE,PAN-RH | 1 | $12.95 | |
| 28 | 0606-043 | HINGE,PAN-LH | 1 | $7.95 | |
| 29 | 0706-224 | HOUSING,HEADLIGHT-WELDMENT | 1 | $29.95 | |
| 30 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 32 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 33 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 34 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 35 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 36 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 37 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 39 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 40 | 0611-465 | DECAL, ELTIGRE -NAME | 1 | $67.95 |
