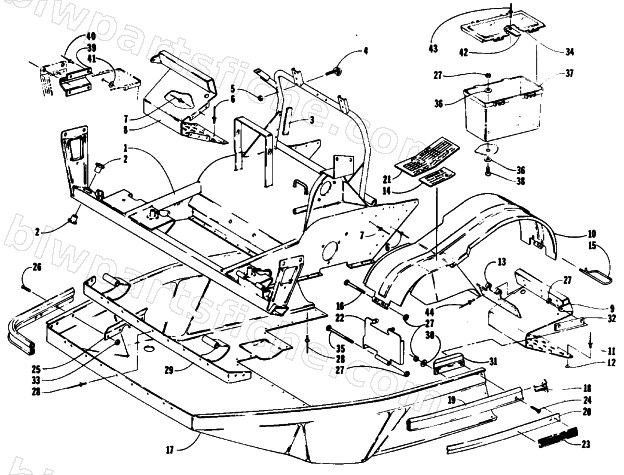

1989 Arctic Cat JAG 340 — BELLY PAN AND FRONT FRAME
1989 JAG 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-060 | FRONT END WELD'T,W/BUSH | 1 | $932.95 | |
| 5 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 6 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 9 | 0116-905 | FOOTREST-LEFT | 1 | $75.95 | |
| 10 | 0707-038 | CLUTCH SHIELD,J340 | 1 | $215.95 | |
| 11 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 12 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 15 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 16 | 8001-056 | SCREW,CAP-HH 1/4-20X5.0 G2 Z&Y | 1 | $1.09 | |
| 17 | 0706-091 | BELLYPAN,MFD | 1 | $689.95 | |
| 18 | 0115-702 | END CAP, RR BUM RH | 1 | $7.95 | |
| 18 | 0115-703 | END CAP, RR BUM LH | 1 | $7.95 | |
| 19 | 0719-001 | BUMPER, FRONT | 1 | $208.95 | |
| 24 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 26 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 0606-315 | HOOD CHANNEL (ALUMINUM) | 1 | $15.11 | |
| 32 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 33 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0106-766 | COVER, TOOLBOX | 1 | $82.95 | |
| 35 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 36 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 37 | 0706-094 | TOOLBOX | 1 | $15.95 | |
| 44 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
