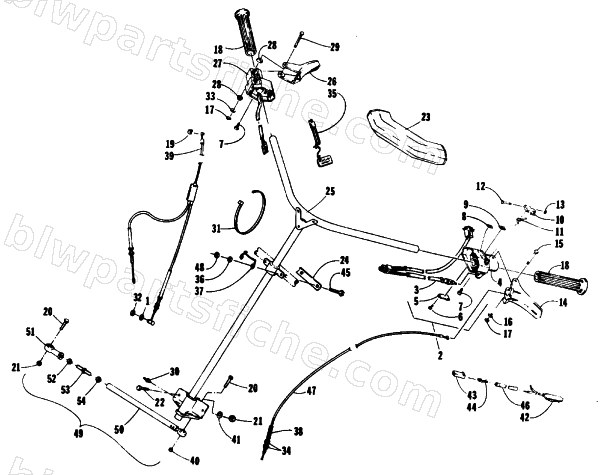

1989 Arctic Cat JAG 340 — STEERING
1989 JAG 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0124-056 | WASHER | 1 | $13.73 | |
| 2 | 0609-044 | HOUSING,BRK CTL -W/SWITCH | 1 | $201.95 | |
| 3 | 0609-086 | SWITCHES & HARNESS,BRK CTL-ASS'Y | 1 | $128.95 | |
| 4 | 0609-087 | HOUSING,BRAKE CONTROL | 1 | $89.95 | |
| 5 | 0609-088 | PLATE,RETAINING-HI BEAM SWITCH | 1 | $13.73 | |
| 6 | 0609-089 | SCREW,RETAINING PLATE | 1 | $3.95 | |
| 7 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 8 | 0611-153 | DECAL,DIMMER(SLVR) | 1 | $6.95 | |
| 9 | 0611-049 | DECAL, PARK BUTTON | 1 | $3.95 | |
| 10 | 0609-048 | ACTUATOR,PARK BRKE | 1 | $14.95 | |
| 11 | 0609-049 | SPRING,ACTUATOR | 1 | $3.95 | |
| 12 | 0609-050 | PIN,RETAINING PARK | 1 | $1.95 | |
| 13 | 0609-051 | RING,RETAINING PRK | 1 | $1.95 | |
| 14 | 0609-042 | LEVER,BRAKE | 1 | $31.95 | |
| 15 | 0609-041 | PIN,BRAKE LEVER | 1 | $2.61 | |
| 16 | 0609-037 | WASHER,FLAT | 1 | $0.25 | |
| 17 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 19 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 22 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 23 | 0117-025 | PAD HANDLEBAR | 1 | $74.95 | |
| 24 | 0105-203 | PLATE, BACKING | 1 | $10.95 | |
| 26 | 0609-016 | LEVER,THROTTLE-VM30 | 1 | $24.95 | |
| 27 | 0609-084 | SWITCH, THROTTLE - W/O LEVER | 1 | $162.95 | |
| 28 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 29 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 30 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 31 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 32 | 0124-057 | E-RING | 1 | $1.64 | |
| 33 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 34 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 35 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 0117-769 | GUIDE CABLE STRG SUPPORT | 1 | $6.75 | |
| 38 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 39 | 0687-009 | CABLE,THROTTLE-VM30 | 1 | $124.95 | |
| 40 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 41 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 45 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 47 | 0187-202 | CABLE,BRAKE | 1 | $76.95 | |
| 48 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 50 | 0105-701 | TIE ROD,STEERING | 1 | $52.95 | |
| 51 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 52 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 53 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 54 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 |
