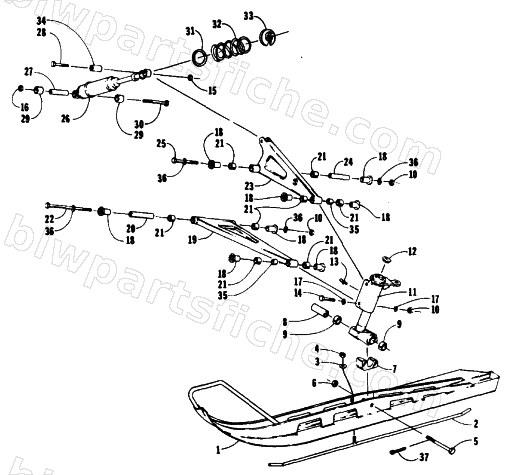

SKI AND FRONT SUSPENSION
1989 JAG AFS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-927 | SKI- WELDT-STF-0703-028 | 1 | $253.95 | |
| 2 | 0703-027 | SKAG,PTD BLK | 1 | $27.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-080 | SCREW,CAP W/HOLE-HH 7/16-14X4 1/4 GR5 Z& | 1 | $20.63 | |
| 6 | 0623-027 | NUT,FLEX7/16-14 NC | 1 | $6.95 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 11 | 0637-025 | SPINDLE ASS'Y | 1 | $426.95 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 8013-232 | SCREW,CAP-HH 3/8-16 X 3.25 GR8 Z&Y | 1 | $1.95 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 17 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 18 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 19 | 0703-018 | ARM, LOWER W/BUSH | 1 | $180.95 | |
| 20 | 0603-063 | TUBE, AXLE | 1 | $17.95 | |
| 21 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 22 | 0623-240 | SCREW,CAP 3/8-16X6.6 GD8 | 1 | $9.95 | |
| 23 | 0703-017 | ARM, UPPER W/BUSH | 1 | $185.95 | |
| 25 | 8013-235 | SCREW,CAP-HH 3/8-16 X 4.50 GR8 Z&Y | 1 | $2.82 | |
| 26 | 0603-098 | SHOCK ABSORBER-FRONT SUS. | 1 | $108.95 | |
| 27 | 0603-050 | TUBE, AXLE | 1 | $55.95 | |
| 29 | 0603-080 | SPACER,SHOCK MTG | 1 | $24.95 | |
| 30 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 31 | 0603-032 | WASHER, SHOCK | 1 | $1.50 | |
| 32 | 1703-765 | SPRING,COMPRESSION-PTD BLK | 1 | $159.95 | |
| 33 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 34 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 35 | 0603-072 | TUBE, AXLE | 1 | $1.95 | |
| 36 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 37 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 |
