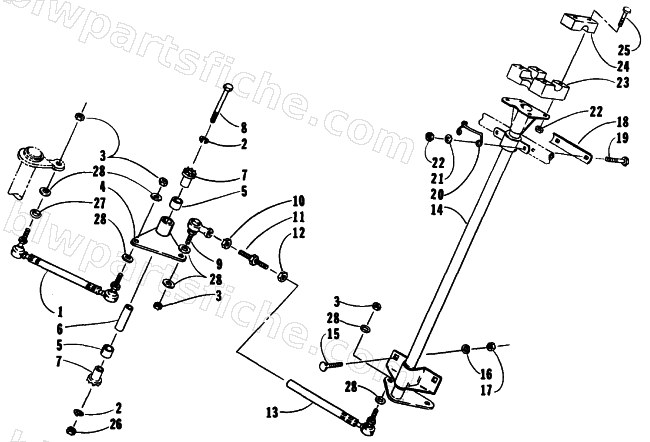

TIE ROD/STEERING POST ASSEMBLY
1989 JAG AFS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0637-023 | TIE ROD ASS'Y | 1 | $102.95 | |
| 2 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 3 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 4 | 0637-026 | BELL CRANK ASS'Y | 1 | $67.95 | |
| 5 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 7 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 8 | 0623-029 | HHCS, 3/8-16X3 3/4 GR8 | 1 | $3.95 | |
| 9 | 0637-022 | BALL JOINT ASS'Y | 1 | $83.95 | |
| 10 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 11 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 12 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 13 | 0637-027 | ROD ASS'Y | 1 | $101.95 | |
| 15 | 0124-053 | BOLT,CARRIAGE 5/16-18 X 7/8 | 1 | $0.55 | |
| 16 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0105-203 | PLATE, BACKING | 1 | $10.95 | |
| 19 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 20 | 0117-769 | GUIDE CABLE STRG SUPPORT | 1 | $6.75 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 24 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 25 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 27 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 28 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
