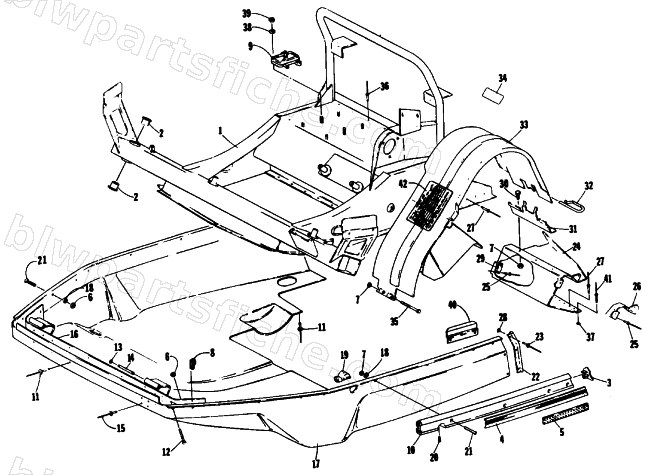

1989 Arctic Cat PANTHER (440 F/C) — BELLY PAN AND FRONT FRAME
1989 PANTHER (440 F/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0611-374 | DECAL,FRONT BUMPER TAPE-RH | 1 | $6.95 | |
| 4 | 0611-375 | DECAL,FRONT BUMPER TAPE-LH | 1 | $47.95 | |
| 6 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 9 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 10 | 0114-483 | BUMPER,FRONT | 1 | $203.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 13 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 14 | 0107-838 | PIN HINGE | 1 | $41.95 | |
| 15 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 17 | 0606-122 | BELLY PAN | 1 | $689.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 21 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 22 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 23 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 24 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 24 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 27 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 28 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 30 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 31 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 32 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 35 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 36 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 37 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 38 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 39 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 40 | 0606-315 | HOOD CHANNEL (ALUMINUM) | 1 | $15.11 | |
| 41 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 |
