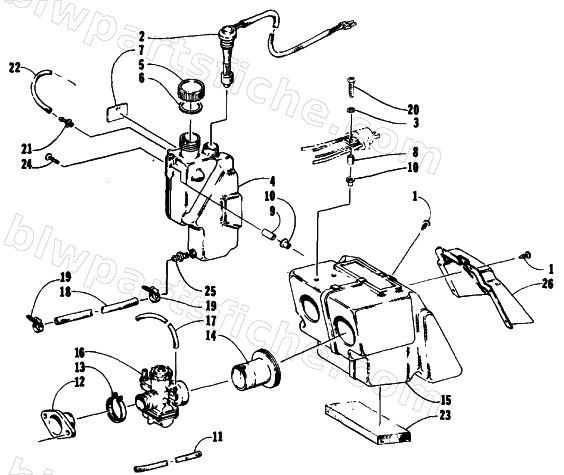

1990 Arctic Cat CHEETAH TOURING — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1990 CHEETAH TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 2 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 3 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 4 | 0670-123 | TANK,OIL | 1 | $85.95 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 9 | 0670-124 | SPACER,SILENCER/OIL TANK | 1 | $3.30 | |
| 10 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 3003-587 | FLANGE,CARB-34MM | 1 | $82.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 14 | 1670-386 | BOOT, AIR SILENCER | 1 | $63.95 | |
| 15 | 0770-030 | AIR SILENCER-ASSY MANUFACTURED | 1 | $191.95 | |
| 16 | 0670-130 | CARBURETOR,VM34-402 | 1 | $397.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 19 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 21 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0617-050 | FOAM,AIRBOX BOTTOM 1.0X4.0X7.0 | 1 | $8.95 | |
| 24 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 25 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 |
