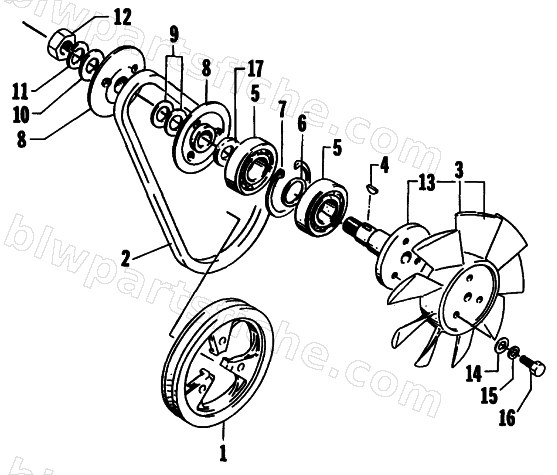

COOLING FAN
1990 COUGAR MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-702 | PULLEY,COOLING FAN DRIVE | 1 | $46.95 | |
| 2 | 3002-156 | BELT,COOLING FAN | 1 | $51.95 | |
| 3 | 3003-008 | FAN, COOLING | 1 | $91.95 | |
| 4 | 3000-266 | KEY(FASTENER) | 1 | $3.30 | |
| 5 | 3000-434 | BEARING,BALL,M20X47X14 | 1 | $46.95 | |
| 6 | 3002-179 | SPACER,M20.2X30X2,WASHER | 1 | $4.95 | |
| 8 | 3002-155 | PULLEY,FAN DRIVEN | 1 | $29.95 | |
| 9 | 3002-728 | SHIM 16X25X.5 SPG STL(WASHER) | 1 | $3.71 | |
| 10 | 3007-902 | WASHER-14MM | 1 | $2.95 | |
| 11 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 12 | 3003-155 | NUT | 1 | $0.75 | |
| 13 | 3003-408 | FAN ASSEMBLY, COOLING | 1 | $188.95 | |
| 14 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 15 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 16 | 3007-392 | BOLT | 1 | $3.95 | |
| 17 | 3002-180 | SPACER,M14.5X30X3.2,WASHER | 1 | $2.95 |
