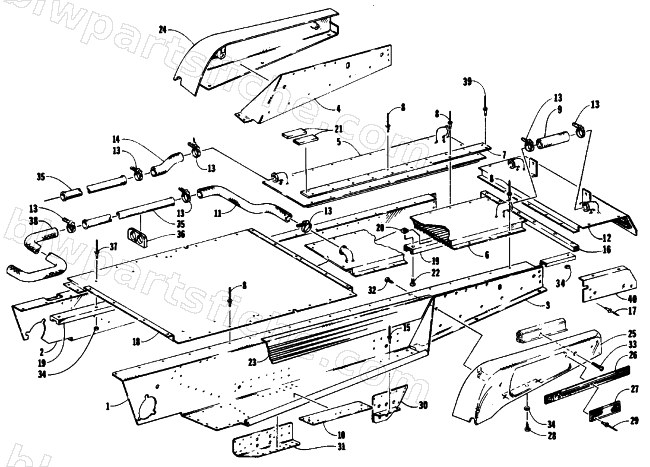

1990 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — TUNNEL AND COOLING ASSEMBLIES
1990 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-153 | TUNNEL,SIDE-LH W/BRKTS. | 1 | $607.95 | |
| 2 | 0718-152 | TUNNEL,SIDE-RH W/BRKTS. | 1 | $260.95 | |
| 3 | 0606-375 | SUPPORT,FENDER-LH | 1 | $49.95 | |
| 4 | 0606-374 | SUPPORT,FENDER-RH | 1 | $39.95 | |
| 5 | 0706-396 | HEAT EXCHANGER-WELDT-RH | 1 | $395.95 | |
| 6 | 0706-397 | HEAT EXCHANGER-WELDT-LH | 1 | $325.95 | |
| 7 | 0606-423 | STRAP,MOUNTING-HEAT EXCHANGER | 1 | $39.95 | |
| 8 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 9 | 0610-045 | HOSE,REAR | 1 | $24.77 | |
| 11 | 0610-029 | HOSE,LH HEAT EXCH TO LH TUBE | 1 | $40.95 | |
| 12 | 0706-455 | HEAT EXCHANGER,REAR-WLDMT | 1 | $254.95 | |
| 13 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 14 | 0610-030 | HOSE,RH HEAT EXCH TO RH TUBE | 1 | $23.95 | |
| 15 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 17 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 19 | 0606-623 | WEARSTRIP,TUNNEL | 1 | $37.95 | |
| 20 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 22 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 23 | 0611-650 | DECAL,TUNNEL-RH | 1 | $55.95 | |
| 23 | 0611-651 | DECAL,TUNNEL-LH | 1 | $56.95 | |
| 24 | 0606-380 | FENDER,RH | 1 | $64.95 | |
| 25 | 0606-381 | FENDER,LH | 1 | $64.95 | |
| 26 | 0611-470 | DECAL,FENDER-RH | 1 | $26.95 | |
| 26 | 0611-471 | DECAL,FENDER-LH | 1 | $33.95 | |
| 27 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 28 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 32 | 0623-128 | SCREW,SELF TAP-TRH TYPE II | 1 | $0.95 | |
| 33 | 0623-120 | SCREW,MACH #8X1 FL HD CR | 1 | $0.15 | |
| 34 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 35 | 0606-439 | TUBE,COOLANT-ALUMINUM | 1 | $54.95 | |
| 37 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 38 | 0610-033 | HOSE,LH TUBE TO WATER PUMP | 1 | $52.95 | |
| 39 | 0623-156 | RIVET,CHERRY SSPQ66 | 1 | $0.95 |
