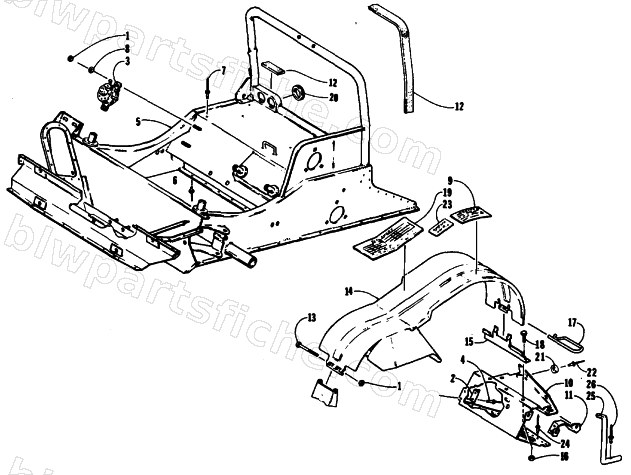

1990 Arctic Cat EL TIGRE EXT SPECIAL — FRONT FRAME AND FOOTREST ASSEMBLY
1990 EL TIGRE EXT SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0670-086 | FUEL PUMP DF52-107 | 1 | $142.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-076 | FRONT END-WELDMENT | 1 | $1,281.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-067 | SHIELD,CLUTCH-ASSY-ALUM | 1 | $219.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 19 | 0611-645 | DECAL,JET CHART-1990 EXT | 1 | $6.95 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 | |
| 21 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 22 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 23 | 0611-704 | DECAL,CAUTION-CARB DRAIN | 1 | $11.95 | |
| 24 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 26 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 |
